Ruckus ZoneFlex 7782-N Wi-Fi Access Point
The Ruckus ZoneFlex 7782-N Wi-Fi Access Point is the first dual-band 802.11n outdoor access point (AP) designed explicitly for very high density user environments such as stadiums, arenas, train stations, convention centers, and major metro areas.
The ZoneFlex 7782-N is the only AP on the market to integrate patented BeamFlex technology and chip-based transmit eamforming (TxBF), combining these technologies with a 30º narrow beam adaptive antenna array to deliver up to 7 dB of signal-to-interference-plus-noise (SINR) improvement above the antenna gain and up to 15 dB of interference mitigation. This enables much longer range signals and more resilient mesh connections that adapt to interference and changing environmental conditions.
Ruckus ZoneFlex 7782-N Wi-Fi Access Point Features
- Concurrent dual-band (5GHz/2.4GHz) support
- Adaptive antenna technology and advanced RF management
- Up to 7dB signal gain / 15dB interference mitigation
- Chip based transmit beamforming increasing signal gain up to 3dB when used with supported clients
- Automatic interference avoidance, optimized for high-density environments
- PoE output supports up to 25 Watts to power small cells and IP surveillance cameras
- Polarization diversity for optimal mobile device performance
In addition, the Ruckus ZoneFlex 7782-N uniquely leverages a predictive model for channel selection (ChannelFly) that uses actual activity to learn what channels will yield the most capacity to provide the highest client speeds and reduce interference.

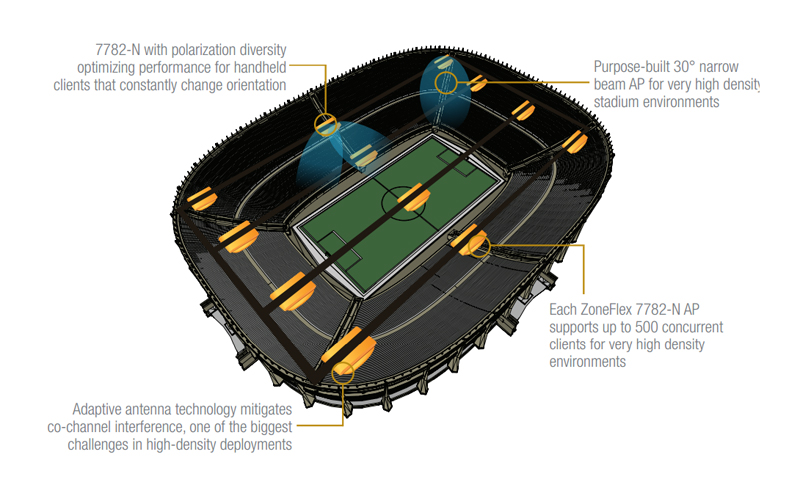

Designed for easy installation within an ultra lightweight and low profile enclosure, the Ruckus ZoneFlex 7782-N is ideal for venue owners looking to quickly and economically deploy Wi-Fi in high-capacity environments Using a very narrow and focused beam, the 7782-N APs can be deployed in close proximity, mitigating co-channel interference. This is critical as high density deployments require a large number of APs within a fixed space
.The 7782-N can be centrally managed by the ZoneDirector Smart WLAN controller or the SmartCell™ Gateway 200 (SCG 200) as part of a unified indoor/ outdoor wireless LAN, deployed as a standalone AP and managed individually, or through the FlexMaster remote Wi-Fi management system.
Ruckus ZoneFlex 7782-N Wi-Fi Access Point - Technical Specifications
Physical Characteristics
- Power: AC Input
Idle: 8W
Typical: 10W
Peak: 18W (PoE output off)
Peak: 50W (PoE output 25W)
- PoE Input
Idle: 6W
Typical: 8W
IEEE 802.3af/at
Physical Size
- 23.9 cm (L), 19.5 cm (W), 11.8 cm (H)
Weight
Ethernet Ports
- PoE Input
10/100/1000Base-T 802.3, 802.3u,
802.3ab, 802.3at/af PoE PD Input
up to 44W with high power PoE injector
Jumbo frame support* (2000 byte MTU)
- PoE Output:
10/100/1000Base-T 802.3,802.3u, 802.3ab, 802.3at/af PoE PSE Output up to 25W
Jumbo frame support (2000 byte MTU)
PoE power out powered with AC in or 60W PoE injector
RF
- Antenna 1 pattern
- Maximum EIRP 38 dBm (2.4GHz); 42 dBm (5GHz)
- Physical Antenna Gain 9 dBi (2.4GHz); 15 dBi (5GHz)
- Beamflex SNIRR RXGain Up to 4 dB
- Interference Mitigation 15 dB
- Minimum RX Sensitivity -101 dBm (2.4GHz); -96 dBm (5GHz)
Performance and Capacity
- High Density UDP Throughput: 125 Mbps (2.4 GHz) 244 Mbps (5 GHz)
- Concurrent Stations: 500
- Simultaneous VoIP Clients: Up to 30
Management
- Deployment Points • Standalone (individually managed), Managed by ZoneDirector, Managed by FlexMaster
Managed by SmartCell™ Gateway (SCG 200)
- Configuration: Web User Interface (HTTP/S), CLI (Telnet/SSH), SNMP v1, 2, 3, TR-069 vis FlexMaster
Wi-Fi
- Standards: IEEE 802.11a/b/g/n, 2.4GHz and 5GHz concurrent operation
- Data rates: 802.11n: 6.5Mbps – 130Mbps (20MHz) 6.5Mbps – 300Mbps (40MHz), 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps, 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
- Radio Chains: 2 x2: 2
- RF Power Output: 26 dBm (2.4GHz) / 24 dBm (5Ghz)**
- Frequency Band: IEEE 802.11n: 2.4 – 2.484 GHz and 5.15 – 5.85 GHz, IEEE 802.11a: 5.15 – 5.875 GHz, IEEE 802.11g: 2.4 – 2.484 GHz
- BSSID: 32 per radio (64 per AP)*
- Advanced Radio Features: BeamFlex Adaptive Antenna Technology, TxBF, LDPC, and ML receiver, GPS, Spectrum Analysis
- Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Authentication via 802.1X, local authentication
database, support for RADIUS and ActiveDirectory
- Certifications: U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China,Costa Rica, Egypt, Hong Kong, India, Japan, Korea, Malaysia, Mexico, New Zealand, Peru, Philippines, Singapore, South Africa, Taiwan, Thailand, UAE, Vietnam
Safety NRTL/EN/IEC/CSA C22.2 60950-1,22. WEEE/RoHS compliance, Wi-Fi Alliance Certification (Wi-Fi Certified™)
Model
- 901-7782-XX61: 7782-N: ZoneFlex 7782-N 802.11n Outdoor Wireless Access Point, 30 degree Narrow Sector
2.4GHz/5GHz antenna. Includes mounting kit, 4-pin AC connector, 1 year warranty. Does not include PoE Injector. Does not include AC Power Cord.
