Please Note: The 4ipnet HSG200-P Visitor Access Gateway is End of Life.

4ipnet HSG200-P Visitor Access Gateway

The 4ipnet HSG200-P is the most economical yet feature-rich Visitor Access Gateway, targeting corporate and small offices that wishes to provide a secure, instant wireless internet access service to their visitors in it’s reception area, meeting rooms and offices.

The 4ipnet HSG200-P Visitor Access Gateway Kit is one of the best solutions for people without any IT background to setup Wireless Internet Service. It does not require cashing in on a pile of complicated equipment, nor does it require the skills of an IT expert to understand how simple the package works.

Implementation

DIY Integration

The 4ipnet HSG200-P package comes with three major parts including: 4ipnet HSG200 Visitor Access Gateway, SDS100 Device Server and PRT100 POS Printer. It is feature-packed for operation, built-in 802.11n/b/g access point, web server and a customizable web pages for clients to login, easy logo-loading for corporate image, simple user/visitor account management tool, network visitor’s ticket printing, service plan selection, traffic logs, IP sharing and etc. Equipped with 4ipnet’s patent-pending 4ipWES (Press-n-Connect) technology, the 4ipnet HSG200-P is able to establish an automatic WDS link with up to 2 access points at the touch of a button. Extending wireless network coverage in your office is a breeze. Setting up a visitor internet access service in the office is fast and easy.

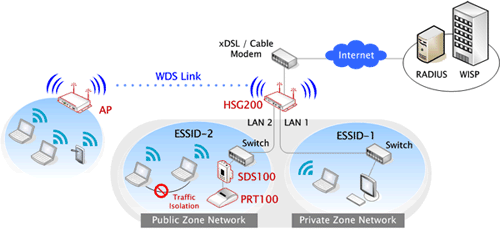

The 4ipnet HSG200 connects to the Internet pipe via ADSL/Cable/Satellite modem, and PRT100 POS Printer connects directly to the SDS100 Device Server through a serial port (in RS-232). Finally, SDS100 has a standard TCP/IP (in RJ-45) interface, so it is easy to connect directly to the 4ipnet HSG200’s LAN port or to your Local Area Network! In reception areas and meeting rooms, it has become necessary for corporations to provide a fast and easy wireless internet access for its visitors.

This will allow access to obtain live business information, retrieving e-mail during conference meetings, voice-over-IP calls, and up-/downloading video streaming by handheld devices within the existing corporate network. For small professional offices such as accounting or law firms who demand high-level network security, a standalone 4ipnet HSG200-P enables the offices to provide fast-n-easy but managed Internet service to their clients or visitors in an isolated fashion, free of charge, and securely preventing unauthorized access to the intranet.

2.4GHz 2 x 2 MIMO Field Replaceable Antenna & Backward Compatible with 802.11n/b/g

• The antenna diversity design enhances the connection reliability to improve data transmission capability
• Two detachable antennas for optimal wireless coverage and field replacement flexibility
• Equipped with a high-speed IEEE 802.11n/b/g wireless network interface, transmission rates up to 300Mbps

Easy Installation and Operation

• Support various broadband deployment options (T1, DSL, Cable) via static IP, DHCP and PPPoE
• Integrated access point enables Wi-Fi access and eliminates the need for additional device
• Built-in user database provides sufficient account capacity for different operation scenarios
• Work on-demand account generator to provide user accounts for visitor-based, on-demand operations

Integrated Security Features

• Standards-based data encryption and user authentication: WEP, WPA, WPA2, IEEE 802.1X
• Secure guest and administrator access using web-based login and administration over SSL
• Configurable packet filtering policies enhance data traffic security
• 4ipWES (Press-n-Connect) with push button enables quick/auto WDS link
• Built-in DoS protection prevents malicious hackers from collapsing the network

Effective User Management

• Complete authentication mechanism blocks unauthenticated users from gaining access to the network
• Role-based and policy-based control policies enhances the protection against malicious users
• “On-line user list” monitors real-time status of each individual user
• Allow session expiration control for On-demand users by time basis

Flexible Accounting and Billing

• Programmable billing profiles allow operators to customize the billing plans for On-demand users
• Bandwidth control enables class of service for different levels of users and maximize profits
• Detailed per-user traffic history log for analysis and record keeping

Networking

• Support Router, NAT mode
• Support static IP, DHCP and PPPoE on WAN interface
• Support IP Plug and Play (IP PnP)
• Built-in DHCP Server and support DHCP Relay
• Support NAT:
• DMZ Server Mapping
• Public Accessible Server
• Port and IP Redirect
• Configurable static route
• Support email service via designated email server
• Support Walled Garden
• Support Walled Garden Ad List to post Advertisement website links on user login portal page
• Support MAC Address Pass-Through
• Support Ethernet connection to external terminal servers

Security

• Support security standards: WEP (64/128/152 bits), WPA/WPA2-PSK, IEEE 802.1X, and TKIP & AES Cipher auto negotiation
• Support VPN Pass-Through (PPTP)
• Support DoS attack protection
• Support Layer 2 isolation
• Support MAC Access Control List
• Configurable user Black List
• Allows MAC address and user identity binding for local user authentication

User Management

• Support 500 local accounts
• Support 2,000 on-demand accounts for visitors
• Simultaneous support for multiple authentication methods (Local, RADIUS*2, and On-demand)
• Support local account roaming
• Policy-based access control (per-role assignments based on Firewall Policies, Routing, Login Schedule, Bandwidth and Session)
• User Session Management:
• SSL protected login portal page
• Support multiple logins with one single account
• Session idle timer
• Session and account expiration control
• Login time frame control
• Session limit
• Import/Export local and on-demand accounts from/to a CSV file

Monitoring and Reporting

• Online status monitoring of users
• Uplink (WAN) connection failure alert
• Support SYSLOG server for diagnosis and troubleshooting
• Support User Logs for traffic recording
• Support user traffic session (TCP/UDP) logging
• Event Log

System Administration

• Web-based management UI
• Customizable login and logout portal page
• SSH remote management
• Remote firmware upgrade
• Console management
• NTP time synchronization
• Backup and restore the system configuration
• SNMP v1/v2c
• 4ipWES (Press-n-Connect) button for WDS Easy Setup

Accounting and Billing

• Provide billing plans for On-demand accounts
• Various on-demand account types: Usage, Duration, Volume, and Hotel Cut-off
• Session expiration control for On-demand accounts
• Detailed per-user traffic history based on time for both local and On-demand accounts
• Traffic history report in an automatic email to administrator
• Support credit card payment via external payment gateway (Authorize.Net, PayPal, SecurePay, WorldPay)
• Support RADIUS accounting
• Support RADIUS VSA for volume-based quota of an external RADIUS server
• On-demand account batch creation
• Send automatic e-mail to report User Log, on-demand User Log, and Monitor IP status respectively

Wireless Radio Specifications

• Wi-Fi standard: IEEE 802.11n/b/g in 2.4GHz frequency band
• Modulation: OFDM, DSSS, CCK
• Wireless Interface: 1 x 802.11 n/b/g (300/11/54 Mbps)
• 2 x 5dBi detachable (SMA Connector) field-replaceable Antenna
• RF output power: 100mW EIRP
• Number of multiple SSIDs: 2
• Number of WDS links: 2

Hardware Specifications

• Metal case compliant with IP50 Standard
• WAN Port: 1 × 10/100 Base-T PoE compliant with IEEE 802.3af
• LAN Port: 2 × 10/100 Base-T
• Console Port: 1 x DB9
• USB Port: 1
• LED Indicators: 1 × Power, 1 × WAN, 2 × LAN, 1 × WLAN, 1 × Internet Connection, 1 × WES, 1 × USB

Physical and Power

• AC Input: 100~240 VAC, 50/60 Hz
• DC Output: 12V, 1A
• Form factor: Wall Mountable
• Dimensions (W x D x H): 8.0" x 5.3" x 1.4" (204 mm x 134 mm x 35 mm)
• Weight: 1.5 lbs (0.69 kg)

Environment

• Operation Temperature: -30 ~ 70 °C (-22 ~ 158 °F)
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Operation Humidity: 10% ~ 80% (Non-condensing)
• Storage Humidity: 5% ~ 90% (Non-condensing)

Certifications

• FCC, CE, RoHS compliant

Package Contents

• 4ipnet HSG200 main unit x 1
• CD-ROM (User’s Manual and QIG) x 1
• Quick Installation Guide (QIG) x 1
• Power Adaptor x 1
• Rubber Antenna x 2
• Console Cable x 1
• Ethernet Cable x 1
• Ground Cable x 1
• Wall Mounting Kit x 1

SDS100 & PRT100 - NetTicketGen Network Ticket Generator Set

SDS100 Smart Device Server

• Number of Ethernet Ports: 1 in RJ-45
• Speed: 10/100 Mbps
• Number of Serial Ports: 2
• Serial Standards: RS-232 DB-9M
• Baud rate: 9600 bps
• Configuration Options: Web Management
• Weight: 300 g
• Dimensions Without Mounting Kit: 90 x 123 x 27 mm
• Dimensions With Mounting Kit: 116 x 123 x 27 mm
• Input Voltage: 12 to 48 VDC
• Power Consumption: 200 mA @ 12 V, 106 mA @ 24 V

PRT100 POS Printer

• Print Method: Thermal Line Printing
• Print Speed: 52 mm/sec
• Print Density: 384 dots/line or 8 dots/mm
• Paper Width: 57.5±0.5 mm
• Interface: Serial (RS-232C)
• Character
• (1) ASCII code: 12*24 dots
• (2) Graphic font: 24*24 dots
• Power Supply: +8 VDC / 3.5A
• Operating Temperature: 0°C ~ +50 °C
• Storage Temperature: -20°C ~ +60 °C
• Dimension: 185mm(L) x 114mm(W) x 90mm(H)
• Weight: 900g

** Specifications subject to change without notice**
