Ruckus ZoneSwitch 4000 Enterprise-Class PoE Gigabit LAN switch (901-4224-UK00)

The Ruckus ZoneSwitch 4000: A Fully Managed Power over Ethernet Layer 2 Gigabit Smart Switch

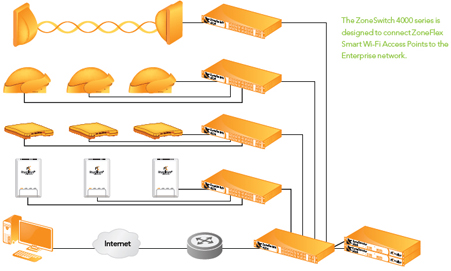

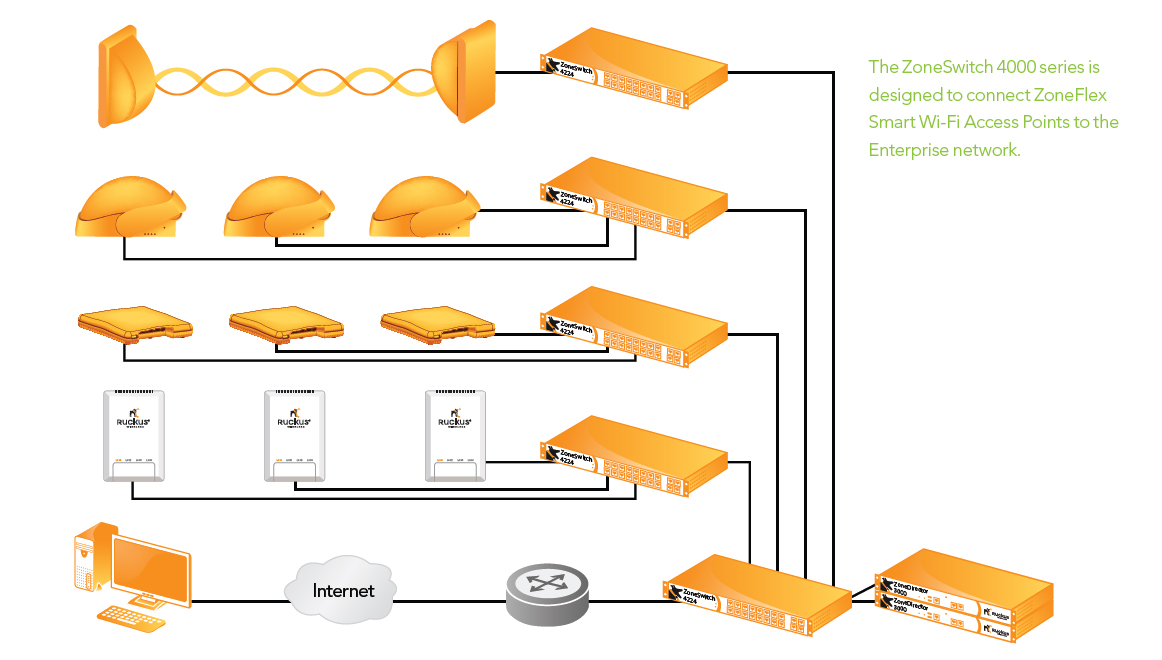

The Ruckus Wireless ZoneSwitch 4000 series is a family of fully managed, Power over Ethernet (POE), 24-port Gigabit Layer 2 LAN switches specifically designed for the packet processing needs of connecting ZoneFlex Smart Wi-Fi access points to the enterprise network infrastructure. The ZoneSwitch 4000s feature advanced scalability, wire-speed Layer 2 switching, mobility, quality of service (QoS), security, and ease of management.

The ZoneSwitch 4124 supports 24 Gigabit Ethernet ports of  802.af POE providing up to 15W per port (180W total budget). Of the 24 Gigabit LAN ports, four ports are dual personality supporting 1000BASE-SX and LX Small Form-Factor Pluggable (SFP) fiber transceivers for easy and flexible uplinks. Enterprises can easily and affordably build high-speed Ruckus ZoneFlex 802.11n wireless networks that deliver wire-like reliability and consistent performance at range, which drives the need for fully managed POE Gigabit Layer 2 LAN Switches. The ZoneSwitch 4000 series are cost effective solutions ideal for enterprise deployment at the edge of the network.

The ZoneFlex Smart Wi-Fi 802.11n access points are purposebuilt for hotels, schools and enterprises by enabling highdefinition IPTV, video-on-demand and other video applications while supporting data applications for guests and employees.

Benefits

• Cost effective Layer 2 smart switch Supports up to 24 WLAN APs per switch, the ZoneSwitch can easily serve edge network deployments
• Flexible POE options Provides 802.3at POE options to power devices such as IP-based VoIP phones eliminating the need for more power cords that add cost to the installation
• Guaranteed throughput for Ruckus ZoneFlex 802.11n Smart Wi-Fi APs Non-blocking, wire-speed architecture maximizes data throughput from 802.11n wireless LANs to enterprise networks
• Easy uplink deployment options Four dual personality ports support 1000BASE-SX and LX Small Form-Factor Pluggable fiber transceivers for easy and flexible uplinks
• Seamless mobility Up to 256 VLANs and dynamic VLANs with GVRP support separating types of traffic for seamless user mobility
• Advanced QoS capabilities Supports 802.1p base priority, port based priority, DSCP (Diffserv), TOS (IP Precedence) and IGMP snooping for real-time voice and video functions
• Standard security Easy integration with existing 802.1X and RADIUS to secure ZoneSwitches
• Fully mangeable Easily manage ZoneSwitches with SNMP, Telnet, and TACACS +

Seamless Integration

The ZoneSwitch 4000 supports up to 256 VLANs and dynamic VLANs with GVRP for separating type of traffic for seamless mobility. Built-in support for advanced QoS capabilities including 802.1p base priority, port based priority, DSCP (Diffserv), TOS (IP Precedence) and IGMP snooping provide real-time voice and video functions. The ZoneSwitch 4000 easily integrates with existing 802.1X and RADIUS security and authentication infrastructure, and combines network management with SNMP, Telnet, and TACACS + within a low-cost solution.

Hardware Features

• Thin 1U rackmountable footprint
• 24 Gigabit POE ports supports 802.3at with 375W POE budget
• 4 dual personality ports support 1000BASE-SX and LX Small Form-Factor Pluggable (SFP) fiber transceivers for flexible uplinks
• Limited lifetime hardware warranty coverage

Software/Switching Features

• Full line rate, non-blocking Gigabit switching architecture
• Support for 256 VLANs per port, protocol based VLANs, and dynamic VLANs with GVRPStatic trunk and 802.3ad LACP, jumbo frame support
• Broadcast storm control, 802.1d/w/s STP, RSTP and MSTP support
• Advanced QoS including L2 802.3 flow control, IGMP v1/v2 snooping, Layer 2 multicast forwarding and filtering, L3 DiffServ, 802.1p and DSCP/TOS based priority
• Security policies include 802.1X support for RADIUS and TACACS +, MAC based authentication, and L2/3/4 ACL filtering
• Web-based GUI supports HTTP and HTTPS/SSL connections, full CLI
• Software upgrade and configuration upload/download via TFTP or HTTP
• SNMP v1/v2c/v3, Telnet/SSHv2, TACACS +, and Syslog

Ruckus ZoneSwitch 4000 Technical Specifications

Physical Ports

• 20 auto-MDI/MDIX, auto sensing 10/100/1000 Mbps, RJ-45 Ethernet access ports
• 4 dual personality ports support auto-MDI/MDIX, auto sensing 10/100/1000 Mbps, RJ-45 Ethernet access ports, or SFP slots for 1000 BASE-SX/LX transceiver modules.
• Ports 1-24 provide 802.3at POE power
• One DB-9 console port for local management

LED Display

• Power/status

Configuration & Operation

• Web-based GUI interface supports HTTP and HTTPS/SSL connections, full CLI, Serial Console Port, Future FlexMaster Management
• SNMP v1/v2c/v3, Telnet/SSL/SSHv2, TACACS +, and Syslog
• Ping, SNTP, LLDP
• Port mirroring

Statistics

• MIBII, BridgeMIB, EtherlikeMIB, P-BridgeMIB, Q-BridgeMIB, InterfaceMIB, RMON Group 1, 2, 3, 9

Software Updates

• Software upgrade and configuration upload/download via TFTP or HTTP

L2 Switching

• VLANs
  • 802.1Q VLAN (256)
  • Port-based VLAN, protocol-based VLAN and GVRP
  • Static trunk and 802.3ad LACP
  • Jumbo frame support
  • Broadcast storm control
  • 802.1d/w/s STP, RSTP and MSTP support

Security

• Authentication
  • 802.1X support for RADIUS, TACACS +
  • Local Authentication
  • MAC based authentication
  • Filtering
  • L2/3/4 ACL

Multimedia & Quality of Service

L2

• 802.3 flow control
• Layer 2 multicast forwarding and filtering
• Packet marking and remarking

L3

• L3 DiffServ
• 802.1p based priority
• DSCP/TOS based priority
• IGMP v1/v2 snooping
• Traffic shaping and policing

Power

• Internal power adapter
• Input voltage: 100-240V AC, 50-60Hz
• Input current: 4A for ZS4124
• Max power rating including full PoE operations: ZS4124: 225W
• PoE power budget:ZS4124: 180W

Physical Size

• 440mm(L), 257mm(W), 44mm(H)
• Mounts in an EIA-standard 19” rack

Weight

• ZS4224: 3930g (8.65lbs)

Environmental Conditions

• Operating temperature: 32°F (0°C) – 113°F (45°C)
• Storage temperature: -20~70°C
• Operating humidity: 10-90% non-condensing
• Storage humidity: 10-95% non-condensing

Certifications

• U.S.
• EU
• Canada
• Australia
• China, India
• Indonesia, Malaysia
• Philippines
• Singapore
• New Zealand

Product Ordering Information

ZoneSwitch 4000 Series

• 901-4124-UK00 - ZoneSwitch supporting up to 24 Gigabit Ethernet ports of 802.af POE
