Funkwerk WI1040n, Indoor WiFi, Single Dual Band Radio Access Point
- 802.11n industrial access point configurable as AP, WDS repeater, WLAN client, bridge
- Dual band 2.4 / 5 GHz, optionally with either one or two wireless modules
- Power supply optionally via 24V DC or PoE
- WAN optionally via Ethernet or optical fiber cable
- Extended temperature range -25°C to +65°C
- Flexible industrial application scenarios with protection class IP40
- Operation in vehicles permitted with E1 approval
- Tested to EN50121 for operation in railroad vehicles
- Operation is medical institutions permissible in accordance with EN60601
- Operation as fat AP or as controller based AP via Funkwerk WLAN controller
The Funkwerk WIx040n series devices are industry-proof access points with protection class IP40, which can be deployed in industry or other harsh application scenarios. The stable, dustproof metal casing and the wide temperature range also allow deployment under extreme environmental conditions. Depending on the model, the devices have one or two IEEE 802.11agbn standard wireless modules and allow PHY rates of up to 300 Mbps per wireless module.
WIx040n for wireless networking of moving machines
Besides the access point mode, the WIx040n can also be operated as a WLAN client. In this mode you can connect machines and devices wireless to your infrastructure. Here it is irrelevant whether your machines have an Ethernet or a serial interface. The FunkwerkWIx040n devices support both connection options.
WIx040 in vehicles
The E1 approval provided means that the WIx040 series devices may be installed in vehicles and powered directly from the vehicle's 24 Volt on-board network. Numerous applications arise in public transportation for example – from updating passenger information through to automatic exchange of passenger data on entry in the bus depot or on arrival at stops.
WIx040n in warehouse management
If you have to supply a large warehouse with WLAN, e.g. to connect your wireless hand scanner to your enterprise resource management system, the Funkwerk WIx040n series devices help you overcome many obstacles. In this scenario and in conjunction with sound wireless cell planning, the WI devices' IAPP protocol provides for optimized roaming behavior of the terminal devices. The optional optical fiber WAN interface spans up to 2 km thus also allowing access points at remote parts of the plant site to also be operated.
Management
Here you have the choice between several solutions. To configure individual devices you only need you Internet browser. The web server integrated in the device allows fast configuration and monitoring via the graphical user interface. For larger installations, the complimentary DIME Manager assists in automatically finding unconfigured devices in the network and enables specific configuration of devices.
WLAN Controller
Optimize your WLAN network by using a Funkwerk WLAN controller. The Funkwerk WLAN controller allows configuration of your customers WLAN network in lesser than 30 minutes ... and this without deeper WLAN know-how! The automatic RF management system relieves you the time killing search for free WLAN channels and selects the best channels for the system. For smaller WLAN networks up to 6 APs the WI1040/WI2040 is able to take over the function of the WLAN controller by itself and works as quasi master AP. For networks with more than 6 up to 24 APs you will need a Funkwerk R1202 as WLAN controller hardware.

Technical Specifications
Versions
- WI1040n: One Dualband Radio, for Indoor usage protection class IP40, three removeable antennas; part number 5010590006
- WI2040n: Two Dualband Radios, for Indoor usage protection class IP40, four removeable antennas; part number 5010590007
Security
- Encryption WEP/WPA: WEP64 (40 Bit key), WEP128 (104 Bit key), WPA personal, WPA enterprise, WPA2 personal, WPA2 enterprise
- IEEE802.11i authentication and encryption: 802.1x/EAP-MD5, 802.1x/EAP-TLS, 802.1x/EAP-TTLS, 802.1x/EAP-PEAP, key management, PSK/TKIP encryption, AES encryption, 802.1x/EAP
- Access control list (ACL): MAC address filter for WLAN clients
- VLAN: Network segments on layer2 possible. Per SSID one VLAN ID available. Static VLAN configuration according IEEE 802.1q; up to 32 VLANs supported.
- Inter cell repeating: Inter traffic blocking for public hot spot (PHS) applications for preventing of communication radio client to radio client in a single radio cell.
- NAT/PAT: Network & Port Address Translation / Stateful Packet Inspection: Isolation of complete network from public access
- VPN - IPSec: 10 tunnels inclusive, 100 more via separate license
- VPN - IPSec: Powerful encryption up to 256 bits (AES, 3DES, DES, CAST, Blowfish, Twofish)
- VPN - IPSec DPD: Dead Peer Detection for IPSec tunnels
- VPN - PPTP: Integrated
- VPN - PPTP: Strong encryption up to 128 bits (MPPE), up to 168 bits (DES/3DES, Blowfish)
- DynDNS / DynVPN: Router can still be reached over the Internet in spite of dyn. IP address
- IKE for IPSec: Pre-Shared Keys and X.509 certificate support X.509: X.509 v1/v3 certificates (PKCS#7/8/10, 12, CLRs, SCEP)
- QoS for IPSec: Available
- PKI Support for IPSec: Available
- NAT Traversal for IPSec: Available
- IPCOMP: IP compression
- IPSec / RADIUS: Available
- IPSec redesign: Policy manager and interface concept
- L2TP: Layer 2 tunnelling protocol for ATM, Ethernet, PPP; user authentication
- GRE: V.0 according RFC 2784 for common encapsulation
- Hardware encryption: 3DES, AES and RC4
Wireless LAN Features
- WLAN standards: 802.11n (Mimo 2x3); 802.11b; 802.11g; 802.11a; 802.11h
- Frequency bands 2.4 GHz indoor/outdoor (EU): 2.4 GHz Indoor/Outdoor (2412-2472 MHz) max. 100 mW EiRP. This information is related to the permitted transmission power in Germany. The permitted transmission power may vary in other countries.
- Frequency bands 5 GHz indoor (EU): 5 GHz indoor (5150-5350 MHz) max. 200 mW EiRP allowed. This information is related to the permitted transmission power in Germany. The permitted transmission power may vary in other countries.
- Frequency bands 5 GHz outdoor (EU): 5 GHz outdoor (5470-5725 MHz) max. 1000 mW EiRP allowed. This information is related to the permitted transmission power in Germany. The permitted transmission power may vary in other countries.
- Frequency bands 5.8 GHz BFWA (Germany): 5.8 GHz BFWA (5755-5875 MHz) max. 4000 mW EiRP allowed. This information is related to the permitted transmission power in Germany. For the usage in other countries, please contact the location regulation authorities.
- WLAN modes: 2.4 GHz operation: 802.11b only; 802.11g only, 802.11b/g/n mixed; 802.11b/g/n mixed long; 802.11b/g/b mixed short; 802.11b/g/n; 802.11g/n; 802.11n only; 5 GHz Operation: 802.11a only; 802.11a/n; 802.11n only
- Automatic Rate Selection (ARS): Available
- Transmission rate: Automatic fallback or fixed transmission rate selectable
- Data rates for 802.11b,g (2.4 GHz): 11, 5.5, 2 und 1 Mbps (DSSS modulation); 54, 48, 36, 24, 18, 12, 9 and 6 Mbps (OFDM modulation)
- Data rates for 802.11a,h (5 GHz): 54, 48, 36, 24, 18, 12, 9 and 6 Mbps (OFDM modulation)
- Data rates for 802.11n (2.4 / 5 GHz): MSC0-15 enables physical rates up to 150 Mbps at 20 MHz channels bandwidth, 2 streams, short guard interval; MSC0-15 enables physical data rates up to 300 Mbps at 40 MHz channels bandwidth, 2 streams, short guard interval
Software Features
- Roaming (access point mode): Seamless roaming with IAPP (artem Inter Access Point Protocol)
- Fast roaming 802.1x (access pointmode): Pre authentication and PMK caching allows fast roaming by 802.1x encryption
- Roaming behaviour (client mode): Adjustable (no, slow, normal, fast, customized roaming). Adaptable for fast movable client (i.e. vehicle), to guarantee a roaming without interruption. This is achieved by scanning of the relevant channels in the background.
- WDS: Wireless Distribution System: Include high security TKIP and AES, interoperable with other devices from the Funkwerk-EC portfolio (not Funkwerk W500)
- Bridge: point-to-point / point-to-multipoint: Point-to-point connection between two access points, point-to-multipoint connection between up to eight partners access points
- Bridge: Full remote configuration: Protocol with encrypted transmission. RTS/CTS threshold adjustable.
- Operating channels: According to the regulatory domain. Transmit speed: Auto fallback or selectable fixed rate.
- Bridge link test: Via the link test the quality of a bridge link can be measured.
- Bridge link encryption: With high security TKIP and AES possible
- Client mode: Routing or bridge mode possible. In bridge mode multiple IP based end devices can be operated simultaneously and additionally one non-IP-based end device
- Buffer pool: For cushioning of peaks
- WMM 802.11e QoS: Data prioritization for TOS data, 802.11e/WMM
- WMM Power Save (U-APSD): Support of active WLAN clients, which support 802.11e power save
- Internet dialup: PPPoE, PPTP
- Load balancing: Session-round-robin, load-dependent bandwidth
- BLD: Broken Link Detection (BLD) per SSID possible.
- NTP: NTP client, NTP server, manually
- DNS: DNS client, DNS server, DNS relay
- DHCP: DHCP client, DHCP server, DHPC relay
Hardware Features
- Certifications: Wi-Fi Certified according 802.11abgn (Rel.7.9.4)
- Standards and certifications: R&TTE Directive 1999/5/EG; EN 60950-1 (IEC60950); EN 60950-22; EN 301489-1; EN301489-17; EN 55022; EN 300328-1; EN 301893; EN 302502; EN 50371
- Medical standards and certifications (only WIx040n): EN 60601-1; EN 60601-2; EN 55011
- Railway and automotive standards and certifications (only WIx040n): EN 50121-3-2; ISO 7637-1; ISO 7637-2, E1-mark
- Wifi Certification: Wifi Certified product according IEEE 802.11abgn under preparation
- LAN / WAN: 2 x 10/100 Mbps Ethernet twisted pair, autosensing, auto MDI/MDI-X
- Optical WAN/LAN Interface: SFP slot for 100 Mbps Fibre Transceiver. Only one ETH interface is activated, if SFP module is plugged
- Serielle Schnittstelle: V.24 interface with D-Sub9 jack for configuration and for data transmission over IP
- WAN: WI1040n: IEEE 802.11a/b/g/n; 1 radio module, 2.4 und 5 GHz band, 3 external antennas; WI2040n: IEEE 802.11a/b/g/n; 2 radio module, 2.4 und 5 GHz band, 4 external antennas
- Antenna for WI1040n: Three antenna connectors with RTNC jacks; delivered incl. three 2 dBi omni-directional antennas

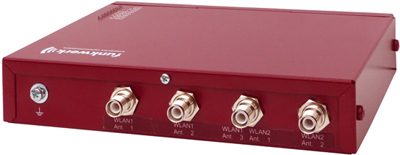

- Antenna for WI2040n: Four antenna connectors with RTNC jacks; delivered incl. four 2 dBi omni-directional antennas
- Temperature Sensor: Temperature supervision and software controlled interaction. Controlling of the radio module heading at temperature below -10°C.
- Alarm relay: Controlled by software i.e. for alarm, overtemperature, undertemperature; 1A 42V AC / 2A 30V DC
- Real time clock: Even at power loss the system time will be available for several hours.
- Power supply: Power requirements: 24V +/-30% max. 1 A; Operation with two redundant power supplies supported; Operation is indepent of the Polarity of the power supply; Power supply unit is not include in the delivery
- PoE: Power-over-Ethernet according IEEE 802.3af
- Status LEDs: Status + activity for WLAN, Ethernet 1, Ethernet 2; SFP, Failure
- Montage: Wall mounting include; DIN Rail mounting as an option available
- Theft protection: Theft protection optional available
- Protection class: IP40 protected for indoor usage
- Dimensions: 215mm x 40mm x 165mm (width x height x depth)
- Weight: Approx. 1200g
- Environment: Temperature operating: -25°C to +65°C; storage: -40°C to 85°C; rel. humidity 10 to 95% (non condensing)
For more technical specifications information, please refer to the Funkwerk WI1040n Datasheet (PDF).
