Funkwerk WI1065n, Indoor/Outdoor WiFi, Single Dual Band Radio Access Point
- 802.11n outdoor access point for mounting directly on the mast
- Dual band 2.4 / 5 GHz, optionally with either one or two wireless modules
- Operation permissible with up to 4000 mW transmission power
- VPN IPsec hardware encryption
- Power supply optionally via 24V DC or PoE
- WAN optionally via Ethernet or optical fiber cable
- Extended temperature range -25°C to +65°C
- Operation as fat AP or as controller based AP via Funkwerk WLAN controller
The Funkwerk WIx065n series devices are industry-proof outdoor access points with protection class IP65, which are versatile in their use and can be installed outdoors without additional measures. According to the model, the devices are equipped with one or two IEEE 802.11agbn standard wireless modules. PHY rates of up to 300 Mbps per wireless module can be achieved as a result.
WIx065n as a high-performance bridgelink
The WI1065n is ideally suited for setting up high-performance line-of-sight radio links. Installation directly on the mast enables the use of very short, low-loss antenna cables thus improving the already very good performance of the devices. Using dual-polarized antennas, 11n technology allows separate data flows to be transmitted in parallel. Dual polarization antennas consist of two antenna segments, which are polarized orthogonally to each other. They, therefore, provide two cable connections. This means that the WI1065n transmits two separated partial streams from a to b, as defined by IEEE 802.11n. The data rate is more than tripled as compared with the previously applied technology. The combination of Funkwerk WIx065n devices with Funkwerk dual-polarization antennas allows net data rates of approx. 75 Mbps (TCP/IP) at a distance of 1000 m, for example.
As another highlight, besides the previous wireless frequencies in the 2.4 GHz and 5 GHz range, the Funkwerk WIx065n series devices also support sub-band 3 in the 5 GHz range (5755-5825MHz). In Germany and Great Britain this frequency band is enabled for the operators of Internet services to operate BFWA (Broadband Fixed Wireless Access) applications with up to 4 Watt transmission power (EiRP). This considerably simplifies Internet connection of small communities without DSL for many professional Internet providers, but also community groups.
WIx065n outdoors to supply mobile subscribers
No matter whether you plan a wide area hotspot outdoors or have to provide WLAN for a large outdoor storage facility, e.g. to connect your wireless hand scanners to your enterprise resource management system, the Funkwerk WIx065n series devices will meet your requirements and help you overcome many obstacles.
When setting up a hotspot outdoors, the WIx65n devices integrate seamlessly into the Funkwerk hotspot solution. If several access points are required to illuminate a site, e.g. a campsite or highway parking lot, the Funkwerk WI2065n comes into use. This outdoor access point with two independent wireless modules can work simultaneously as an access point in the 2.4 GHz band for the hotspot guests and as a 5 GHz bridge for the wireless backbone.
Another field of application for the WIx065n access points is WLAN supply of large outdoor storage facilities for mobile subscribers, e.g. hand scanners. In this scenario, in conjunction with sound wireless cell planning, the IAPP protocol used by the WI devices ensures optimal roaming behavior of the terminal devices. The optional optical fiber WAN interface spans up to 2 km thus also allowing access points at remote parts of the plant site to also be operated.
Management
Here you have the choice between several solutions.
To configure individual devices you only need you Internet browser. The web server integrated in the device allows fast configuration and monitoring via the graphical user interface. For larger installations, the complimentary DIME Manager assists in automatically finding unconfigured devices in the network and enables specific configuration of devices.
WLAN Controller
Optimize your WLAN network by using a Funkwerk WLAN controller. The Funkwerk WLAN controller allows configuration of your customers WLAN network in lesser than 30 minutes ... and this without deeper WLAN know-how! The automatic RF management system relieves you the time killing search for free WLAN channels and selects the best channels for the system. For smaller WLAN networks up to 6 APs the WI1040/WI2040 is able to take over the function of the WLAN controller by itself and works as quasi master AP. For networks with more than 6 up to 24 APs you will need a Funkwerk R1202 as WLAN controller hardware.

Technical Specifications
Versions
- WI1065n: One Dualband Radio, for outdoor usage protection class IP65, three removeable antennas; part number 5010590013
- WI2065n: Two Dualband Radios, for outdoor usage protection class IP65, four removeable antennas; part number 5010590014
Security
- Encryption WEP/WPA: WEP64 (40 Bit key), WEP128 (104 Bit key), WPA personal, WPA enterprise, WPA2 personal, WPA2 enterprise
- IEEE802.11i authentication and encryption: 802.1x/EAP-MD5, 802.1x/EAP-TLS, 802.1x/EAP-TTLS, 802.1x/EAP-PEAP, key management, PSK/TKIP encryption, AES encryption, 802.1x/EAP
- Access control list (ACL): MAC address filter for WLAN clients
- VLAN: Network segments on layer2 possible. Per SSID one VLAN ID available. Static VLAN configuration according IEEE 802.1q; up to 32 VLANs supported.
- Inter cell repeating: Inter traffic blocking for public hot spot (PHS) applications for preventing of communication radio client to radio client in a single radio cell.
- NAT/PAT: Network & Port Address Translation / Stateful Packet Inspection: Isolation of complete network from public access
- VPN - IPSec: 10 tunnels inclusive, 100 more via separate license
- VPN - IPSec: Powerful encryption up to 256 bits (AES, 3DES, DES, CAST, Blowfish, Twofish)
- VPN - IPSec DPD: Dead Peer Detection for IPSec tunnels
- VPN - PPTP: Integrated
- VPN - PPTP: Strong encryption up to 128 bits (MPPE), up to 168 bits (DES/3DES, Blowfish)
- DynDNS / DynVPN: Router can still be reached over the Internet in spite of dyn. IP address
- IKE for IPSec: Pre-Shared Keys and X.509 certificate support
- X.509: X.509 v1/v3 certificates (PKCS#7/8/10, 12, CLRs, SCEP)
- QoS for IPSec: Available
- PKI Support for IPSec: Available
- NAT Traversal for IPSec: Available
- IPCOMP: IP compression
- IPSec / RADIUS: Available
- IPSec redesign: Policy manager and interface concept
- L2TP: Layer 2 tunnelling protocol for ATM, Ethernet, PPP; user authentication
- GRE: V.0 according RFC 2784 for common encapsulation
- Hardware encryption: 3DES, AES and RC4
Wireless LAN Features
- WLAN standards: 802.11n (Mimo 2x3); 802.11b; 802.11g; 802.11a; 802.11h
- Frequency bands 2.4 GHz indoor/outdoor (EU): 2.4 GHz Indoor/Outdoor (2412-2472 MHz) max. 100 mW EiRP. This information is related to the permitted transmission power in Germany. The permitted transmission power may vary in other countries.
- Frequency bands 5 GHz indoor (EU): 5 GHz indoor (5150-5350 MHz) max. 200 mW EiRP allowed. This information is related to the permitted transmission power in Germany. The permitted transmission power may vary in other countries.
- Frequency bands 5 GHz outdoor (EU): 5 GHz outdoor (5470-5725 MHz) max. 1000 mW EiRP allowed. This information is related to the permitted transmission power in Germany. The permitted transmission power may vary in other countries.
- Frequency bands 5.8 GHz BFWA (Germany): 5.8 GHz BFWA (5755-5875 MHz) max. 4000 mW EiRP allowed. This information is related to the permitted transmission power in Germany. For the usage in other countries, please contact the location regulation authorities.
- WLAN modes: 2.4 GHz operation: 802.11b only; 802.11g only, 802.11b/g/n mixed; 802.11b/g/n mixed long; 802.11b/g/b mixed short; 802.11b/g/n; 802.11g/n; 802.11n only; 5 GHz Operation: 802.11a only; 802.11a/n; 802.11n only
- Automatic Rate Selection (ARS): Available
- Transmission rate: Automatic fallback or fixed transmission rate selectable
- Data rates for 802.11b,g (2.4 GHz): 11, 5.5, 2 und 1 Mbps (DSSS modulation); 54, 48, 36, 24, 18, 12, 9 and 6 Mbps (OFDM modulation)
- Data rates for 802.11a,h (5 GHz): 54, 48, 36, 24, 18, 12, 9 and 6 Mbps (OFDM modulation)
- Data rates for 802.11n (2.4 / 5 GHz): MSC0-15 enables physical rates up to 150 Mbps at 20 MHz channels bandwidth, 2 streams, short guard interval; MSC0-15 enables physical data rates up to 300 Mbps at 40 MHz channels bandwidth, 2 streams, short guard interval
Software Features
- Roaming (access point mode): Seamless roaming with IAPP (artem Inter Access Point Protocol)
- Fast roaming 802.1x (access point mode): Pre authentication and PMK caching allows fast roaming by 802.1x encryption
- Roaming behaviour (client mode): Adjustable (no, slow, normal, fast, customized roaming). Adaptable for fast movable client (i.e. vehicle), to guarantee a roaming without interruption. This is achieved by scanning of the relevant channels in the background.
- WDS: Wireless Distribution System: Include high security TKIP and AES, interoperable with other devices from the Funkwerk-EC portfolio (not Funkwerk W500)
- Bridge: point-to-point / point-to-multipoint: Point-to-point connection between two access points, point-to-multipoint connection between up to eight partners access points
- Bridge: Full remote configuration: Protocol with encrypted transmission. RTS/CTS threshold adjustable.
- Operating channels: According to the regulatory domain. Transmit speed: Auto fallback or selectable fixed rate.
- Bridge link test: Via the link test the quality of a bridge link can be measured.
- Bridge link encryption: With high security TKIP and AES possible
- Client mode: Routing or bridge mode possible. In bridge mode multiple IP based end devices can be operated simultaneously and additionally one non-IP-based end device
- Buffer pool: For cushioning of peaks
- WMM 802.11e QoS: Data prioritization for TOS data, 802.11e/WMM
- WMM Power Save (U-APSD): Support of active WLAN clients, which support 802.11e power save
- Internet dialup: PPPoE, PPTP
- Load balancing: Session-round-robin, load-dependent bandwidth
- BLD: Broken Link Detection (BLD) per SSID possible.
- NTP: NTP client, NTP server, manually
- DNS: DNS client, DNS server, DNS relay
- DHCP: DHCP client, DHCP server, DHPC relay
Hardware Features
- Certifications: Wi-Fi Certified according 802.11abgn (Rel.7.9.4)
- Standards and certifications: R&TTE Directive 1999/5/EG; EN 60950-1 (IEC60950); EN 60950-22; EN 301489-1; EN301489-17; EN 55022; EN 300328-1; EN 301893; EN 302502; EN 50371
- Wifi Certification: Wifi Certified product according IEEE 802.11abgn under preparation
- LAN / WAN: 2 x 10/100 Mbps Ethernet twisted pair, autosensing, auto MDI/MDI-X
- Optical WAN/LAN Interface: SFP slot for 100 Mbps Fibre Transceiver. Only one ETH interface is activated, if SFP module is plugged
- Serielle Schnittstelle: V.24 interface with D-Sub9 jack for configuration
- WAN: WI1065n: IEEE 802.11a/b/g/n; 1 radio module, 2.4 und 5 GHz band, 3 external antennas; WI2065n: IEEE 802.11a/b/g/n; 2 radio module, 2.4 und 5 GHz band, 4 external antennas

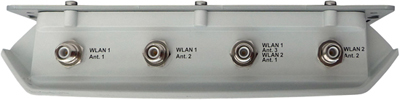

- Antenna for WI1065n: Three antenna connectors with RTNC jacks; delivered incl. three 2 dBi omni-directional antennas
- Antenna for WI2065n: Four antenna connectors with RTNC jacks; delivered incl. four 2 dBi omni-directional antennas
- Temperature Sensor: Temperature supervision and software controlled interaction. Controlling of the radio module heading at temperature below -10°C.
- Alarm relay: Controlled by software i.e. for alarm, overtemperature, undertemperature; 1A 42V AC / 2A 30V DC
- Real time clock: Even at power loss the system time will be available for several hours.
- Power supply: Power requirements: 24V +/-30% max. 1 A; Operation with two redundant power supplies supported; Operation is indepent of the Polarity of the power supply; Power supply unit is not include in the delivery
- PoE: Power-over-Ethernet according IEEE 802.3af
- Status LEDs: Status + activity for WLAN, Ethernet 1, Ethernet 2; SFP, Failure
- Montage: Wall mounting include; Mast mounting as an option available
- Theft protection: Theft protection optional available
- Protection class: IP65 protected for outdoor usage
- Dimensions: WIx065n: 260mm x 56mm x 256mm (width x height x depth)
- Weight: Approx. 1800g
- Environment: Temperature operating: -25°C to +65°C; storage: -40°C to 85°C; rel. humidity 10 to 95% (non condensing)
For more technical specifications information, please refer to the Funkwerk WI1065n Datasheet (PDF).
