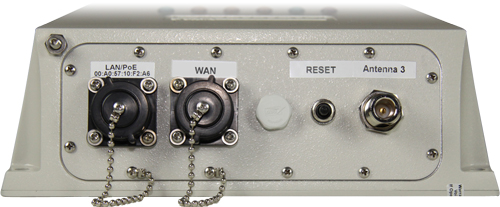

LANCOM OAP-310agn Dual Band, Outdoor Access Point

The first ever high-speed outdoor access point according to 802.11n!

• Dual-band outdoor access point (2.4 / 5 GHz)
• Transmits effective net data rates up to 100 Mbps over distances of several kilometres
• 1000 mW permitted transmission power in the 5-GHz band (4000 mW in BFWA frequencies)
• Access point, bridge and client mode
• Extremely robust IP-66 protective housing (operations at -30° to +65°)
• Professional management functions, Multi SSID, VLAN and QoS
• Integrated DSL router with stateful inspection firewall
• Free updates
• Optional: Hotspot support

The outdoor access point LANCOM OAP-310agn Wireless has an IP66 housing that is resistant to water jets, features integrated heating and cooling, and is suitable for wall or mast mounting - all of which makes it ideal for locations with the highest demands on performance, stability and robustness.

More Performance

The 802.11n draft 2.0 standard includes a number of new mechanisms that significantly increase available bandwidth. This allows a up to fivefold increase in speed over 802.11a/g networks with netto data rates of up to 100 Mbps. In combination with the dual-polarization antenna AirLancer Extender O-D9a, directional radio links can be established over very long distances and with very high data rates. The O-D9a achieves this with horizontally and vertically polarized waves at a single frequency to provide two separate transmission paths.

Security and flexibility

LANCOM guarantees you communications with the highest standards of security: The wide range of supported security technologies and the option to combine with LANCOM WLAN Controllers enables each configuration to provide the optimal solution for the most individual of requirements. For example, with the aid of Multi-SSID and protocol filters, up to 8 different user groups can each be assigned different levels of security. And the use of VLAN technology, Quality of Service and bandwidth limitation provides you with the secure transfer of video or multimedia data streams in parallel.

Professional management

LANCOM's WLAN Management Tools offer real benefits to network administrators for the installation, control and monitoring of access points. Supplied with the product, LANmonitor helps to optimize the alignment of point-to-point links, aids diagnosis, and offers network monitoring. LANCOM WLANmonitor gives you a complete overview of all WLAN networks and clients within range; LANconfig has convenient functions for the remote configuration of APs individually or in groups, and it has functions for managing large-scale projects. What's more the LANCOM OAP-310agn Wireless is supported by all LANCOM WLAN Controllers (optional hardware components for fully automatic management and monitoring of WLAN infrastructures).

Extensive range of accessories

The LANCOM OAP-310agn Wireless is shipped with a full set of accessories including mounting materials, outdoor LAN and antenna cables and the appropriate high-power PoE adapter. The LANCOM Antenna Distance Calculator helps with the planning and calculation of radio bridges. The LANCOM Outdoor Installation Guide provides all the necessary information for professional outdoor planning and installation, including appropriate measures for lightning and surge protection. The range of options available with LANCOM WLAN antennas, cables and surge protectors is sure to provide you with a solution to meet your needs.

More Reliability for the Future

From the earliest days, LANCOM products have been designed for a product life of several years. They are equipped with hardware that is dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System - LCOS - are available several times a year, free of charge and offering major features.

Technical Specifications

WLAN

• Frequency band 2.4 GHz or 5 GHz (EU compliance): 2400 -2483.5 MHz (ISM) or 5150 -5750 MHz or 5725-5825 MHz (UK only)
• Data rates 802.11b/g: 54 Mbps to IEEE 802.11g (fallback to 48, 36 , 24, 18, 12, 9, 6 Mbps, Automatic Rate Selection) compatible to IEEE 802.11b (11, 5.5, 2, 1 Mbps, Automatic Rate Selection), 802.11 b/g compatibility mode or pure g or pure b
• Data rates 802.11a: 54 Mbps (fallback to 48, 36 , 24, 18, 12, 9, 6 Mbps, Automatic Rate Selection), fully compatible with TPC (adjustable power output) and DFS 2 (automatic channel selection, radar detection) according to ETSI regulations.
• Data rates 802.11n: 300 Mbps according to IEEE 802.11n Draft 2.0 with MSC15 (Fallback to 6,5 Mbps with MSC0)
• Range 802.11a/b/g: Up to 150 m (up to 30 m in buildings)
• Range 802.11n: Up to 250 m @ 6.5 Mbps (up to 20 m @ 300 Mbps indoor)
• Maximum transmission power 2.4 GHz:
  • Output power at antenna connector: 802.11b: +19 dBm @ 1 and 2 Mbps, +19 dBm @ 5.5 und 11 Mbps
  • Output power at antenna connector: 802.11g: +18 dBm @ 6 to 36 Mbps, +17 dBm @ 48 Mbps, +16 dBm @ 54 Mbps; 802.11n: +19 dBm @ 6,5/13 Mbps (MCS0/8, 20 MHz), +10 dBm @ 65/130 Mbps (MCS7/15, 20 MHz), +17 dBm @ 15/30 Mbps (MCS0/8, 40 MHz), +10 dBm @ 150/300 Mbps (MCS7/15, 40 MHz)
• Maximum transmission power 5 GHz:
  • Output power at antenna connector 802.11a/h: +18 dBm @ 6 to 24 Mbps, +17 dBm @ 36 Mbps, +16 dBm @ 48 Mbps, +15 dBm @ 54 Mbps; 802.11n: +18 dBm @ 6,5/13 Mbps (MCS0/8, 20 MHz), +10 dBm @ 65/130 Mbps (MCS7/15, 20 MHz), +17 dBm @ 15/30 Mbps (MCS0/8, 40 MHz), +10 dBm @ 150/300 Mbps (MCS7/15, 40 MHz)
• Minimum transmission power: Transmission power reduction in software in 1 dB steps to min. 0.5 dBm
• Receiver sensitivity 2.4 GHz:
  • 802.11b: -91 dBm @ 11 MBit/s, -96 dBm @ 1 MBit/s; '802.11g: -96 dBm @ 6 MBit/s, -83 dBm @ 54 MBit/s; 802.11n: -96 dBm @ 6,5 Mbps (MCS0, 20 MHz), -79 dBm @ 65 Mbps (MCS7, 20 MHz); -95 dBm @ 13 Mbps (MCS8, 20 MHz), -75 dBm @ 130 Mbps (MCS15, 20 MHz); -90 dBm @ 15 Mbps (MCS0, 40 MHz), -75 dBm @ 150 Mbps (MCS7, 40 MHz); -90 dBm @ 30 Mbps (MCS8, 40 MHz), -71 dBm @ 300 Mbps (MCS15, 40 MHz)
•  Receiver sensitivity 5 GHz:
  • 802.11a/h: -95 dBm @ 6 MBit/s, -82 dBm @ 54 MBit/s; 802.11n: -95 dBm @ 6,5 Mbps (MCS0, 20 MHz), -77 dBm @ 65 Mbps (MCS7, 20 MHz); -94 dBm @ 13 Mbps (MCS8, 20 MHz), -74 dBm @ 130 Mbps (MCS15, 20 MHz); -91 dBm @ 15 Mbps (MCS0, 40 MHz), -74 dBm @ 150 Mbps (MCS7, 40 MHz); -91 dBm @ 30 Mbps (MCS8, 40 MHz), -70 dBm @ 300 Mbps (MCS15, 40 MHz)
• Radio channels 2.4 GHz: Up to 13 channels, max. 3 non-overlapping (2.4 GHz band)
• Radio channels 5 GHz: Up to 19 non-overlapping channels (5 GHz band) with automatic dynamic channel selection (DFS 2)

WLAN operating modes

• WLAN access point: Infrastructure mode (autonomous operation or managed by LANCOM WLAN Controller).
• WLAN bridge: Point-to-multipoint connection of up to 7 Ethernet LANs (mixed operation optional), broken link detection, blind mode, supports VLAN. When configuring Pt-to-Pt links, pre-configured names can be used as an alternative to MAC Adresses for creating a link. Rapid spanning-tree protocol to support redundant routes in Ethernet networks.
• WLAN router: Use of the LAN connector for simultaneous DSL over LAN, IP router, NAT/Reverse NAT (IP masquerading) DHCP server, DHCP client, DHCP relay server, DNS server, PPPoE client (incl.Multi-PPPoE), PPTP client and server, NetBIOS proxy, DynDNS client, NTP, port mapping, policy-based routing based on routing tags, tagging based on firewall rules, dynamic routing with RIPv2, VRRP.
• WLAN client: Transparent WLAN client mode for wireless Ethernet extensions, e.g. connecting PCs or printers by Ethernet; up to 64 MAC addresses. Automatic selection of a WLAN profile (max. 8) with individual access parameters depending on signal strength or priority.

Statistics

• Statistics: Extensive Ethernet, IP and DNS statistics; SYSLOG error counter
• Accounting: Connection time, online time, transfer volumes per station. Snapshot function for regular read-out of values at the end of a billing period.
• Export: Accounting information exportable via LANmonitor and SYSLOG

Hardware

• Power supply: Via Power over Ethernet, 1 x PoE Injector supplied
• Environment: -30°C to +65°C at 95% max. humidity (non condensing)
• Housing: 235 mm x 210 mm x 80 mm (W x H x D), 3.4 kg, robust metal housing, IP 66 protection rating, ready for wall and top-hat rail mounting, 6 LEDs for status display
• Power consumption (max): ca. 25 Watts
• Footnote: Operates with the supplied PoE adapter only

Declarations of conformity

• CE: EN 301 489-1, EN 301 489-17, EN 60950
• 2.4 GHz WLAN: ETS 300 328
• 5 GHz WLAN: EN 301 893 version 1.3.1 (incl. DFS 2)
• Notifications: Certifications notified in Germany, Belgium, Netherlands, Luxembourg, Austria, Switzerland, UK, Italy, Spain, France, Portugal, Czech Republic, Denmark

Package content

• Manual: Printed User Manual (DE, EN) and Quick Installation Guide (DE/EN/FR/ES/IT/PT/NL)
• CD: CD with firmware, management software (LANconfig, LANmonitor, WLANmonitor) and documentation
• Cable: Water-resistant, UV-resistant Ethernet PoE cable with water-resistant screw connector, 15m
• Antennas: Three 3 dBi dipole dualband antennas
• Power supply unit: Via Power over Ethernet, 1 x PoE Injector supplied

Support

• Warranty: 3 years & Support via Hotline and Internet KnowledgeBase
• Software updates: Regular free updates (LCOS operating system and management tools) via Internet

For more technical specifications information, please refer to the LANCOM OAP-310 Datasheet (PDF).
