LANCOM OAP-54-1 Dual Band, Integrated Antenna, Outdoor Access Point
Dual-band outdoor access point for bridging large distances, campus coverage or for establishing hotspots
- 54/108-Mbps radio module for IEEE 802.11a/h or 802.11b/g modes
- Integrated directional antenna plus two external antenna connectors
- Antenna gain: 2.4 GHz: 13.5 dBi, 5 GHz: 15 dBi
- 1000 mW EIRP permitted transmission power in the 5-GHz band
- Professional management functions, Multi SSID, VLAN and QoS
- Access point, bridge and client modes
- Extremely robust protective housing
- Temperature range -30°C to +70°C
- Measures: 25.8 cm x 25 cm x 9.5 cm
- Optional: Hotspot support
The LANCOM OAP-54-1 Wireless features a robust IP-66 aluminum housing and integrated directional antennas, making it ideal for operations wherever professional, flexible and compact outdoor wireless LAN solutions are necessary.
Compact and versatile
The internal wireless LAN module in the LANCOM OAP-54-1 operates at either 2.4 GHz or 5 GHz. Due to the antenna integrated into the lid the access point offers a compact and cost-effective solution for point-to-point bridges. For other purposes, such as public wireless LAN access, the external antenna connectors can be fitted with the omni-directional antennas as supplied or with sector antennas from LANCOM's extensive portfolio of outdoor solutions. Permitted transmission powers of up to 4000 mW EIRP in the 5 GHz band allow point-to-point wireless links to operate even over several kilometers.
Security and reliability
LANCOM guarantees you communications with the highest standards of security with an extensive range of encryption and authentication mechanisms. With the aid of Multi-SSID and protocol filters, up to 8 different user groups can each be assigned different levels of security. VLAN technology, matured quality-of-service functions and bandwidth limitation enable the reliable transmission of video and multimedia data streams. The OAP has been designed for environments where the demands on stability and robustness are high. However, the device should not be installed in salt water environments without a suitable protective housing.
Professional management
LANCOM’s WLAN management tools offer real benefits to network administrators for the installation, control and monitoring of access points. Supplied with the product, LANmonitor helps to optimize the alignment of point-to-point links, aids diagnosis, and offers network monitoring. LANCOM WLANmonitor gives you a complete overview of all WLAN networks and clients within range; LANconfig has convenient functions for the remote configuration of APs individually or in groups, and it has functions for managing large-scale projects.
Extensive range of accessories
The LANCOM OAP-54-1 Wireless is shipped with a full set of accessories including mounting materials, outdoor cables and the appropriate standards-compliant 802.3af PoE adapter. The LANCOM Outdoor Installation Guide provides all the necessary information for professional outdoor planning and installation, as well as the appropriate measures for lightning and surge protection. The external antenna connectors allow different types of LANCOM antennas to be used.
More Reliability for the Future
From the earliest days, LANCOM products have been designed for a product life of several years. They are equipped with hardware which is dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System–LCOS–are available several times a year, free of charge and offering major features. LANCOM offers unbeatable protection of your investment!
Technical Specifcations
WLAN
- Frequency band 2.4 GHz or 5 GHz: 2400-2483.5 MHz (ISM) or 5150-5825 MHz (depending on country-specific restrictions)
- Antenna Gain: 13.5 dBi in 2.4 GHz, 15.5 dBi in 5 GHz
- Data rates 802.11b/g: 54 Mbps to IEEE 802.11g (fallback to 48, 36, 24, 18, 12, 9, 6 Mbps, Automatic Rate Selection) compatible to IEEE 802.11b (11, 5.5, 2, 1 Mbps, Automatic Rate Selection), 802.11 b/g compatibility mode or pure g or pure b, Super A/G with Turbo Mode (108 Mbps), bursting, compression
- Data rates 802.11a/ h: 54 Mbps to IEEE 802.11a/h (fallback to 48, 36 , 24, 18, 12, 9, 6 Mbps, Automatic Rate Selection), Super A/G with Turbo Mode (108 Mbps), bursting, compression, fully compatible with TPC (adjustable power output) and DFS (automatic channel selection, radar detection) according to ETSI EN 301 893 V. 1.5.1
- Range (outdoor / P2P): More than 20 km in 5 GHz.
- Max. radiated power (EIRP), 2.4 GHz band:
- 802.11b/g: Up to 20 dBm / 100 mW EIRP (transmission power control according to TPC or manual settings)
- Max. radiated power (EIRP), 5 GHz band:
- 802.11a/h: Up to 30 dBm / 1000 mW or up to 36 dBm / 4000 mW EIRP (depending on national regulation on channel usage and subject to further obligations such as TPC and DFS)
- Minimum transmission power: Transmission power reduction in software in 1 dB steps to min. 0.5 dBm
- Receiver sensitivity 2.4 GHz:
- 802.11b: -95 dBm @ 1 Mbps, -89 dBm @ 11 Mbps
- 802.11g: -90 dBm @ 6 Mbps, -73 dBm @ 54 Mbps
- Reception sensitivity 5 GHz:
- 802.11a/h: -88 dBm @ 6 Mbps, -71 dBm @ 54 Mbps
- Radio channels 2.4 GHz: Up to 13 channels, max. 3 non-overlapping (2.4 GHz band)
- Radio channels 5 GHz: Up to 26 non-overlapping channels (available channels and further obligations such as automatic DFS dynamic channel selection depending on national regulation)
Statistics
- Statistics: Extensive Ethernet, IP and DNS statistics; SYSLOG error counter, WLAN statistics
- Accounting: Connection time, online time, transfer volumes per station. Snapshot function for regular read-out of values at the end of a billing period. Timed (CRON) command to reset all counters at once
- Export: Accounting information exportable via LANmonitor and SYSLOG
Hardware
- Dimensions & Weight: 25.8 cm x 25 cm x 9.5 cm, weight: 1.95 kg (without cable)
- Power supply: Via Power over Ethernet, compliant with IEEE 802.3af, 1 x PoE Injector supplied
- Environment: -30°C to +70°C at 95% max. humidity (non condensing)

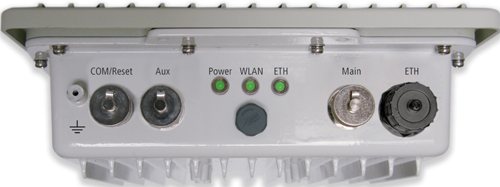

- Housing: Robust metal housing, IP 66 protection rating, ready for wall and pole mounting, 3 LEDs for status display, please note: device must not be mounted in salt water environments without a suitable protective housing
- Power consumption (max): ca. 9 Watts
Declarations of conformity
- CE: EN 301 489-1, EN 301 489-17, EN 60950
- 2.4 GHz WLAN: ETS 300 328
- 5 GHz WLAN: EN 301 893 version 1.5.1
- Notifications: Certifications notified in Germany, Belgium, Netherlands, Luxembourg, Austria, Switzerland, UK, Italy, Spain, France, Portugal, Czech Republic, Denmark
Package content
- Manual: Printed User Manual (DE, EN), Quick Installation Guide (DE/EN/FR/ES/IT/PT/NL), LANCOM Outdoor Guide
- CD: Data medium with firmware, management software (LANconfig, LANmonitor, WLANmonitor) and documentation
- Cable: Serial configuration cable, 10 pins
- Reset plug: Plug for resetting the device via serial interface
- Cable: Water-resistant, UV-resistant Ethernet PoE cable with water-resistant screw connector, 15m
- Mounting Kit: Mounting kit for wall and pole mounting
- Antennas: Two 3 dBi dipole dualband antennas
- Power supply unit: Via Power over Ethernet compliant with IEEE 802.3af, 1 x PoE Injector supplied
Support
- Warranty: 3 years & Support via Hotline and Internet KnowledgeBase
- Software updates: Regular free updates (LCOS operating system and management tools) via Internet
For more technical specifications information, please refer to the LANCOM OAP-54-1 Datasheet (PDF).
