PheeNet WCS-01R Outdoor WiFi Access Point, Point-to-Point Backhaul
IEEE802.11abg 1 x Radio Wifi / Wireless Outdoor Bridge for Wireless Coverage with Wireless Mesh Network
The PheeNet WCS-01R is an advanced solution for Citywide Wifi / Wireless Coverage, Wireless Mesh Network, and Wireless Backhaul, which operates in IEEE802.11a 5GHz and IEEE802.11b/g 2.4GHz frequency band simultaneously.

This series provides significant performance in terms of ranges, throughput, co-channel interference mitigation with its superior patent software techniques. This enables service provider to offer highly cost effective Citywide Wireless Coverage, Wireless Mesh Network, and Wireless Backhaul by “Daisy Chain” topology without compromising quality.
By taking advantage of “Daisy Chain” features, this series provides the “Daisy Chain Mesh” application. DC-Mesh is a more practical idea in Mesh application, and gets rid of the WiFi Mesh disadvantage, like long latency, up to 30% to 50% throughput drop.
To maximum the performance, WCS-02R / WCS-03R support two radios modes. Both radios are combined to operate as a single unit that provides a double bandwidth of a single radio equivalent. This is ideal for bandwidth-intensive application such as video surveillance, resulting in crystal clear video images. This mode also provides a "fat pipe" for point to point wireless backhaul. Both radios is capable of the applications, like Load Balance, Fail Over and one way transmit (TX, and RX separated in different radios) to enhance the performance of system in Citywide Wireless Coverage, Wireless Mesh Network, and Wireless Backhaul.
To conclude, WCS series is the best choice for the Wireless Coverage, Wireless Mesh Network, and Wireless Backhaul. It will offer you the biggest CP ratio and totally ease WISP / SI’s cost on implementation and maintenance.

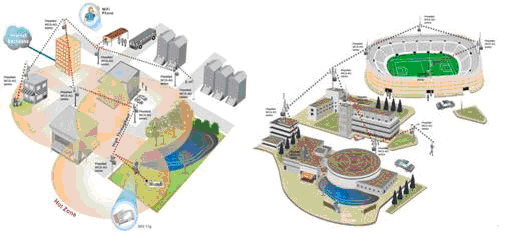

Application

Features
- Offers an Multi-functional Modes
- Access Point
- AP Client
- Bridge / Router
Comprehensive Security Features
- WPA with TKIP/AES support
- 802.1x EAP support (Client and Server modes)
- 64/128/152 bits Dynamic WEP keys
- Radius client
- Hide ESSID
- MAC address filtering
- NAT
Long Operating Range and Connect more Separate Networks
- Bridges in Point to Point (PtP) connect two networks in different locations through a single wireless link.
- Bridges in point-to-multipoint mode links more separate networks in scattered buildings through wireless links.
Harsh Outdoor Environments to Keep Operation
- Certified IP68 sturdy water-tight housing
- Built-in automatic thermal sensor and regulator module to facilitate deployment in cold regions
- PoE module
System Management
- Firmware upgrade through TFTP, FTP
- Interface status display
- SSH Telnet
- Syslog
- SNMP v1/v2
- Easy Configuration backup
Simple Installation and Deployment
Software Alignment / Deployment Tools
User Friendly Device Management Utility
- Backup the Configuration
- Restore the Configuration
- Firmware Upgrade
- Back to Factory Default / Reboot
- Batch operation for above items
Specification
Industrial Standard
Standard
IEEE 802.11a, 802.11b, 802.11g, 802.3, 802.3u, 802.3af
RF
Radio
1 x 802.11abg
Frequency Band
- USA: 2.400~2.483GHz, 5.15~5.35GHz, 5.725~5.825GHz
- Europe: 2.400~2.483GHz, 5.15~5.35GHz, 5.47~5.725GHz
- Japan: 2.400~2.483GHz, 4.90~5.091GHz, 5.15~5.25GHz
- China: 2.400~2.483GHz, 5.725~5.85GHz
Signal Type
TDM
Modulation
- DBPSK, DQPSK, CCK
- OFDM (BPSK,QPSK,16QAM,64QAM)
Sensitivity
- >Receiver Sensitivity:
- PER<8% for 11b; PER<10% for 11g & 11a
- >802.11b Sensitivity:
- DBPSK (1Mbps) -93dBm
- DQPSK (2.2Mbps) -92dBm
- CCK (5.5Mbps) -90dBm
- CCK (11Mbps) -88dBm
- >802.11g Sensitivity
- BPSK (6Mbps) -89dBm
- BPSK (9Mbps) -88dBm
- QPSK (12Mbps) -86dBm
- QPSK (18Mbps) -85dBm
- 16QAM (24Mbps) -83dBm
- 16QAM (36Mbps) -80dBm
- 64QAM (48Mbps) -77dBm
- 64QAM (54Mbps) -72dBm
- >802.11a Sensitivity
- BPSK (6Mbps) -88dBm
- BPSK (9Mbps) -87dBm
- QPSK (12Mbps) -85dBm
- QPSK (18Mbps) -84dBm
- 16QAM (24Mbps) -82dBm
- 16QAM (36Mbps) -80dBm
- 64QAM (48Mbps) -76dBm
- 64QAM (54Mbps) -71Bm
Output Power
- 802.11b: 18dBm
- 802.11g: 18dBm @6Mbps, 15dBm@54Mbps
- 802.11a: 17dBm @6Mbps, 13dBm@54Mbps
Transmit Power Control
Any
Channel
802.11b/g:
- US/Canada: 11(1~11)
- Major European Country: 13 (1~13)
- France: 4 (10~13)
- Japan: 11b: 14 (1~13 or 14th), 11g: 13 (1~13)
- China: 13 (1~13)
802.11a:
- US/Canada: 12 non-overlapping channels (5.15~5.35GHz, 5.725~5.825GHz)
- Europe: 19 non-overlapping channel (5.15~5.35GHz, 5.47~5.725GHz)
- Japan: 4 non-overlapping channel (5.15~5.25GHz)
- China: 5 non-overlapping channel (5.725~5.85GHz)
Operating Mode
- AP
- AP Client
- Bridge
- Router
Security
- 64/128/152-bit WEP
- WPA (EAP, TKIP)
- WPA2 (AES, 802.11i)
- IEEE802.1x client and server
- SSID Broadcast Disable
- Wireless Isolation
- MAC Address Filtering
- Radius Client
- Deny Station without cable
IP Assignment
DHCP Server / Client, Fixed IP
Management
SSH Telnet (system configuration & management, firmware upgrade, reset to default and configuration backup, etc.)
SNMP V1 & V2
User Friendly Device Management Utility (Backup the Configuration, Restore the Configuration, Firmware Upgrade, Back to Factory Default / Reboot, Batch operation for above items)
Special Features
- Daisy Chain (Bridge / Route)
- Daisy Chain Mesh
- High Speed Roaming
- Auto DFS (802.11h – Dynamic Frequency Selection)
- 802.1q VLAN - Multiple SSID supported (3 max.)
- Bandwidth Control of Wireless Client (MAC)
- 802.11e WiFi QoS (by port & service)
- MS NetBIOS IP Filter Enable / Disable
- Wireless Station Fix AP MAC Address Optional
- Web RSSI
- Software Alignment / Deployment Tools
- Statistic Report
- Spanning Tree
- Link Test
Network
Firewall
NAT (in Router Operation Mode)
Protocol
TCP, UDP, NetBIOS, NAT
Hardware
CPU
IXP420 /266MHz
RF
Atheros AR-5213
SDRAM
64MB
Flash
8MB
Interface
- 1 x 10/100Base-TX (RJ-45) W/ 802.3af POE function
- 1 x N-type connector (Reverse Female)
- 1 x RS-232 port
Environment
- Operating Temperature: -30 ~ 65°C
- Storage Temperature: -40 ~ 80°C
- Humidity: 0%~95%(non condensing)
Enclosure
Metal Case, IP68 certified
Power Supply
- DC 48Volt / 0.8A; AC adapter 100-240V
- Support Power over Ethernet
LED Indicators
Wireless / Status
Dimensions
226 (L) x 197 (W) x 79 (H) mm
Weight
1600g
Certificate
FCC , CE
