Ubiquiti airMAX NanoStation AC NS-5AC

0 Based on 0 ratings.
04/04/2020 £102.15 exc. VAT
122.58 inc. VAT
Availability:In stock for next day delivery
Apply for Trade Pricing
Key Features
  • Frequency 5GHz
  • Throughput 450+ Mbps
  • Range 15+ km

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

Available Product Options:
Need Product Setup / Training / Support?:
UK Cable Required?:
  • Product Details
  • Reviews
  • White Papers / Case Studies

Ubiquiti airMAX NanoStation AC NS-5AC

The Ubiquiti airMAX NanoStation AC is an indoor/outdoor, compact, high-performance CPE, featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Ubiquiti NanoStation AC Key Features

  • Frequency 5GHz
  • Throughput 450+ Mbps
  • Range 15+ km
  • Management Radio
  • UNMS App Compatible

The Ubiquiti NanoStation AC gets maximum gain out of the smallest footprint. The low cost, high-performance, and small form factor of the NS-5AC makes it extremely versatile and economical to deploy.

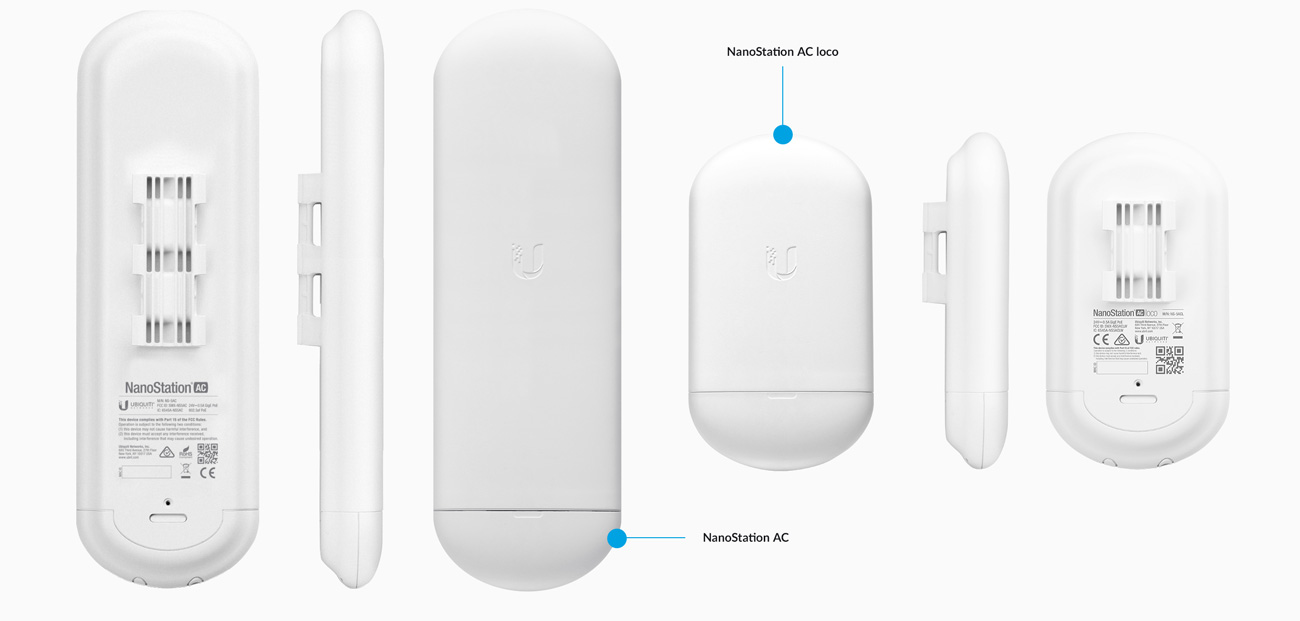

Sleek Industrial Design
The NanoStation AC represents the next evolution of the iconic CPE design that revolutionised the Wireless ISP industry.

Sleek Design

Dual Ethernet Connectivity
The NanoStation AC (NS-5AC) provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Dual Ethernet
Improved Surge Protection
This device features enhanced protection against ESD events.
Surge ProtectionManagement Wi-Fi Radio
Each NS-5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Deployment Example

Ubiquiti NanoStation AC (NS-5AC) - Technical Specifications


  • Dimentions:
    • With Mount: 257 x 84 x 30 mm (10.12 x 3.31 x 1.18")
    • Without Mount: 257 x 84 x 41 mm (10.12 x 3.31 x 1.61")
  • Weight: 233 g (8.22) oz
  • Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
  • Max. Power Consumption: 8.5W
  • Power Method:
    • 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
    • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Gain: 16 dBi
  • Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
  • Channel Bandwidths: 10/20/30/40/50/60/80 MHz
  • Processor Specs: Atheros MIPS 74Kc, 560 MHz
  • Memory: 64 MB DDR2
  • Cross-pol Isolation: 20 dB Minimum
  • Max. VSWR: 1.6:1
  • Beamwidth: 45 degrees (H-pol) / 45 degrees (V-pol) / 45 degrees (Elevation)
  • Polarisation: Dual Linear
  • Enclosure: UV Resistant Polycarbonate
  • LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength
  • Mounting: Pole-Mount (Kit Included)
  • Operating Temperature: -40 to 70 C (-40 to 158 F)
  • Operating Humidity: 5 to 95% Noncondensing
  • RoHS Compliance: Yes
  • ESD/EMP Protection: ±24kV Contact/Air
  • Shock & Vibration: ETSI300-019-1.4
  • Certifications: CE, FCC, IC

Specifications Tab
