Ubiquiti EdgePower 54V Power Supply with UPS and PoE (EP-54V-72W)

0 Based on 0 ratings.
15/12/2019 £150.00 exc. VAT
180.00 inc. VAT
Availability:Discontinued Coming Soon
Apply for Trade Pricing
Qty:
Key Features
  • 54 VDC Output
  • Dual 54 VDC Passive PoE Output
  • AC Input

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:EP-54V-72W
Available Product Options:
Need Product Setup / Training / Support?:
  • Product Details
  • Reviews
  • White Papers / Case Studies

Ubiquiti EdgePower 54V Power Supply with UPS and PoE (EP-54V-72W)

The Ubiquiti EP-54V-72W is a convenient UPS device with dual PoE output ports to protect your WISP site against power loss.

Ubiquiti EP-54V-72W Key Features

  • 54 VDC Output
  • Dual 54 VDC Passive PoE Output
  • AC Input
  • Optional 12V Battery Input

You can receive alerts in the event of a power outage, and the EP-54V-72W offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).

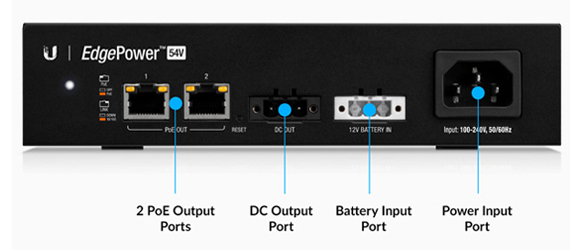

Versatile Design
The rack-mountable EdgePower 54V features 54VDC and 2 RJ45 PoE Ports.

Versatile Design

UPS for WISP
You can receive alerts in the event of a power outage, and the EdgePower 54V offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).

UPS for WISP

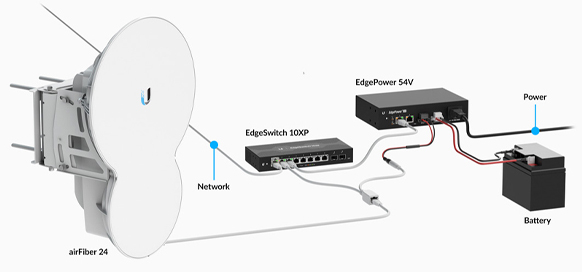

WISP Site Example
WISP Site Example

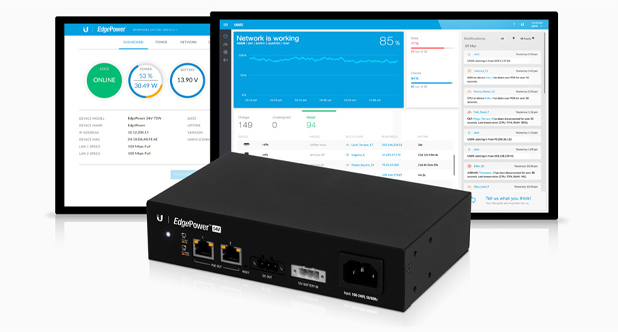

Management Flexibility
Designed for convenient management, the EdgePower Configuration Interface allows you to configure and monitor PSU features in a graphical user interface. You can also use UNMS (Ubiquiti® Network Management System) for remote management, and SNMP is available to monitor the EdgePower for issues that warrant attention.
Management Flexibility



Ubiquiti EP-54V-72W Technical Specifications

General

  • Dimensions: 192 x 43.7 x 115 mm (7.559 x 1.72 x 4.528")
  • Weight: 650 g (1.43 lb)

Interfaces

  • Networking: 2 x 10/100 Mbps RJ45 Ports
  • Management: Ethernet In-Band

PoE Output:

  • 2 x 54VDC Passive PoE (Pins 4, 5+; 7, 8-)

DC Output

  • 54V, 1.3A

Power Method

  • AC Input: 100-240VAC, 50-60 Hz, Universal Input
  • Battery Input: DC Terminal Block

Power Supply

  • AC Input: AC/DC 72W
  • Battery Input: 12VDC Lead Acid Battery*

Max. Power Consumption

  • System: 2W
  • Output: 72W

LEDs

  • System: Status
  • RJ45 Data Ports: PoE; Link/ Activity

ESD/ EMP Protection

  • Air: ± 12 kV, Contact: ± 12 kV

Operating Temperature

  • 0 to 40° C (32 to 104° F)

Operating Humidity

  • 10 to 90% Noncondensing

Certifications

  • CE
  • FCC
  • IC

Specifications Tab
