Ubiquiti NanoSwitch 4 Port Outdoor Switch

The Ubiquiti NanoSwitch is an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the NanoSwitch 4 Port supports up to 4 Gbps. Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment and for use with the Ubiquiti airMax and UniFi Video range.

Ubiquiti NanoSwitch 4 Port Outdoor Switch Key Features

  • 1x Gigabit 24V Passive PoE In Port
  • 3x Gigabit 24V Passive PoE Out Ports
  • Weather-Resistant Enclosure
  • Supports Up To 4 Gbps

Power Strip Simplicity for 24V Devices
Simply providing 24V 2-pair input makes the Ubquiti NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.

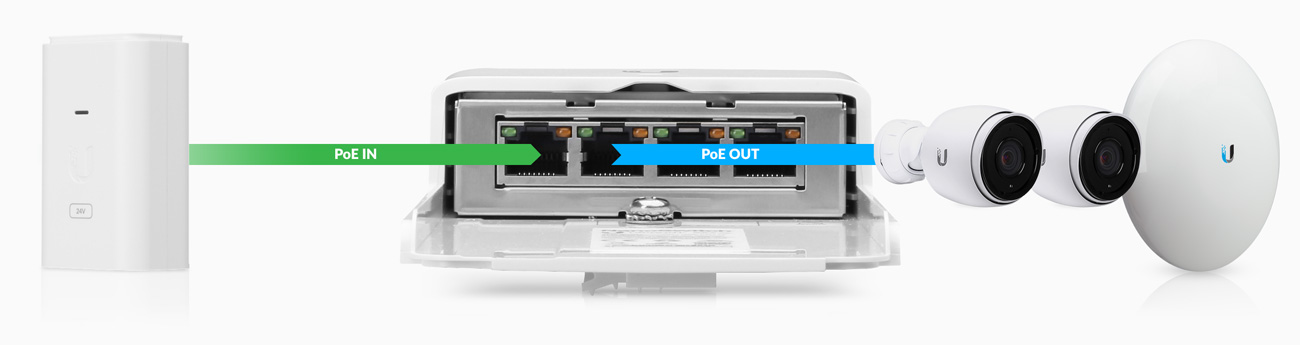

Power StripPoE Passthrough
*PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
*PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 30W PoE output.

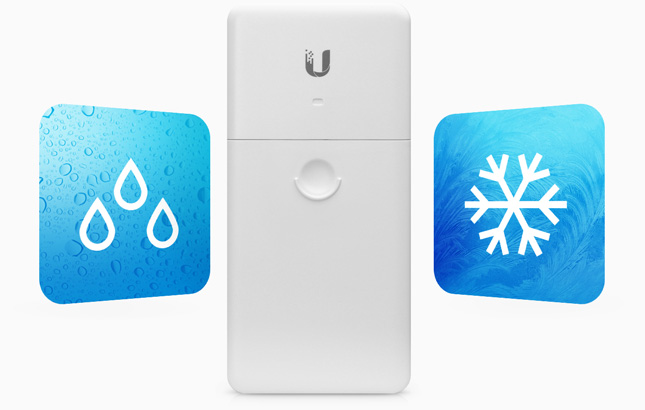

PoEDesigned for Outdoor Durability
The NanoSwitch features an outdoor weatherproof form factor, with an operating temperature of between -30 to 70° C (-22 to 158° F).
Deployment Example
Deployment Example

Ubiquiti NanoSwitch 4 Port Outdoor Switch - Technical Specifications


  • Dimensions: 196.4 x 93.5 x 32.4 mm
  • Weight: 271 g
  • Enclosure Characteristics: White Polycarbonate
  • Total Non-Blocking Line Rate: 4 Gbps
  • Typical Power Consumption: 1.5W
  • Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
  • Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (30W)
  • Power Method Passive: 24V, 2-Pair PoE In
  • Power Supply: POE-24-30W PoE Adapter (Not Included)
  • Passive PoE Voltage Range: 21.6 - 26.4V
  • LEDs: Speed/Link/Activity (All Ports)
  • Networking Interfaces: 4x 10/100/1000 Mbps RJ45 Ports
  • PoE Interfaces: Passive 24V, 2-Pair PoE In
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature: -30 to 70°C
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Certifications: CE, FCC, IC
