Ubiquiti RocketDish 5GHz 31bdBi airMAX ac PtP Bridge Dish Antenna

Based on 1 ratings.

Write a Review

SKU:RD-5G31-AC

£310.10exc. VAT

�372.12 inc. VAT

Qty:

Coming Soon

Need Product Setup / Training / Support?:
Radio BaseStation required?:

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Ubiquiti RocketDish ac Datasheet (PDF)
Ubiquiti RocketDish ac Quickstart (PDF)

Key Features

Gain 31dBi
Frequency 5.1-5.8 GHz
Integrated mount

Product Details
Specification
Reviews
Questions

Please Note: All EU customers will be required to update the firmware on their unit before first use. This is not applicable to units used within the UK and outside of the EU.

Ubiquiti RocketDish 5GHz 31bdBi airMAX ac PtP Bridge Dish Antenna (RD-5G31-AC)

The Ubiquiti RocketDish (RD-5G31-AC) is a Carrier Class, 2x2 Point to Point Bridge Dish Antenna that seamlessly integrates with Rocket M radios (sold separately. See Available Options above).

Ubiquiti RocketDish (RD-5G31-AC) Key Features

airMAX Carrier Class 2x2 PtP Bridge Dish Antenna
Frequency range 5.1-5.8 GHz
Gain 31 dBi
High RF Performance
Integrated mount

Powerful Beam Directivity
The RocketDish (RD-5G31-AC) features high isolation and improved F/B ratio for better Signal-to-Noise Ratio (SNR). This allows the use of higher-order modulation and the maximum data rate.

Reduced Interference, Higher Gain
The improved F/B ratio and lower sidelobes significantly reduce interference, so the innovative RocketDish (RD-5G31-AC) provides superior gain and beam performance for high-capacity, multipoint networks.

Plug and Play Installation
The Ubiquiti RocketDish (RD-5G31-AC) requires no special tools, you simply snap it securely into place with the universal Rocket mount built into the antennas.

Industrial-Strength Construction
Ubiquiti's RocketDish (RD-5G31-AC) is designed with robust mechanical design for outdoor application use.

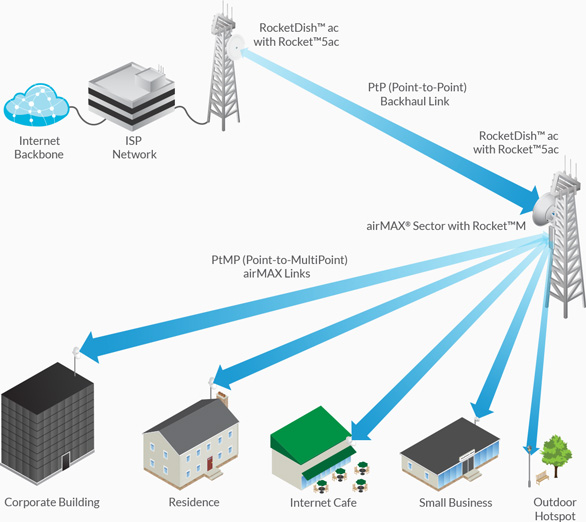

Example Deployment

Depoyment

Ubiquiti RocketDish (RD-5G31-AC) - Technical Specifications

General

Dimensions: 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in)
Weight: 7.6 kg (16.76 lb) -Mount Included
Frequency Range: 5.1 - 5.8 GHz
Gain: 31 dBi
Max. VSWR: 1.4:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 1,028 N @ 200 km/h (231 lbf @ 125 mph)
Polarisation: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

Specifications Tab

by Alison Love Allows perfect integration with my rocket M5. The integrated mount is great as it allows me to easil.. See full review

Date Added: Monday 12 January, 2015

Displaying 1 to 1 (of 1 reviews)

Result Pages: 1
