Please Note: This product has been discontinued. Please see the EdgeSwitch-5XP for an alternative.

Ubiquiti TOUGHSwitch PoE 5-Port (TS-5-PoE) Switch

Please Note: Please Note: The TS-5-PoE has been updated with new branding. It is now the Ubiquiti EdgeSwitch 5 XP.

The Ubiquiti TOUGHSwitch PoE is a 5-port Gigabit switch with 24V PoE support for each port. The TOUGHSwitch PoE 5-Port is a cost effective solution, perfectly designed for powering a number of Ubiquiti products including the airMAX, the UniFi, and airVision devices.

Ubiquiti TOUGHSwitch PoE 5-Port Key Features

  • Ports - 5 Gigabit PoE
  • PoE - 24V Configurable Passive
  • TOUGHSwitch PoE Configuration Interface
  • Wall-Mountable
The Ubiquiti TOUGHSwitch PoE 5-Port delivers reliable passive PoE and Gigabit connectivity to any attached Ubiquiti devices and as well as any that support passive PoE.

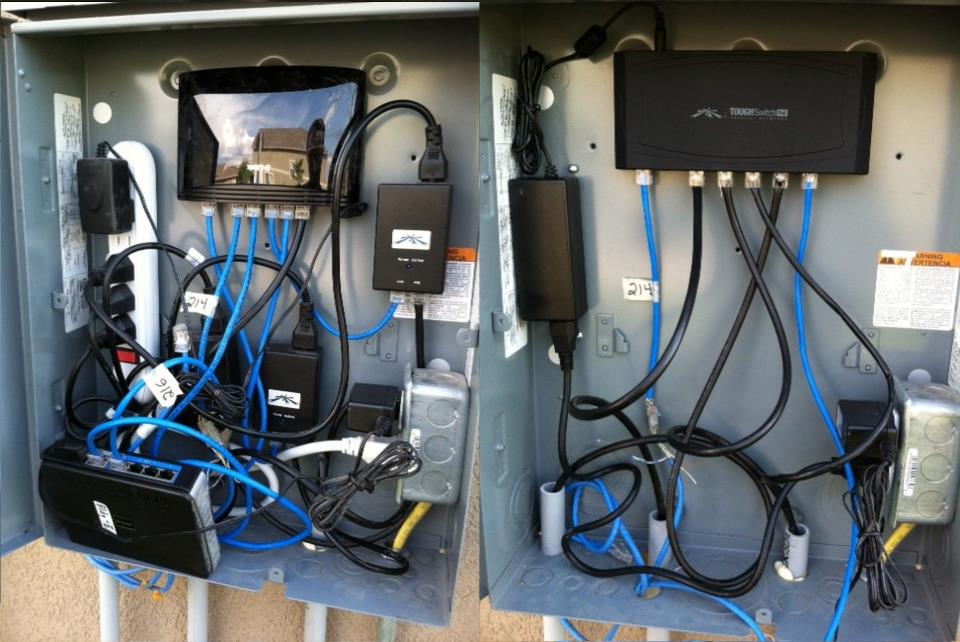

Before and After Ubiquiti TOUGHSwitch PoE 5-Port

Ubiquiti TOUGHSwitch

Before                                                                     After

Ubiquiti TOUGHSwitch PoE 5-Port - Technical Specifications


  • Dimensions 197 x 87.5 x 27.3 mm
  • Weight 250 g
  • Power Input 24VDC, 2.5A Power Adapter (Included)
  • Max. Power Consumption 11.5 W
  • PoE Out Voltage Range 22-24VDC
  • Max. PoE Wattage Per Gigabit Port 18 W
  • ESD Rating 24 kV Air / 24 kV Contact
  • PoE Method Passive
  • Button Reset
  • USB Port 2.0 Type A (Reserved for Future Use)
  • Processor MIPS24K 400 MHz
  • System Memory 64 MB
  • Code Storage 8 MB
  • Certifications CE, FCC, IC
  • Wall-Mount Yes
  • Operating Temperature -25 to 55°C (-13 to 131° F)
  • Operating Humidity 90% Non-Condensing

PoE Configurable Per Port

  • Management N/A
  • Ports 1-5 Off/24V

LEDs Per Port

  • Management Link/Activity
  • Ports 1-5 PoE, Speed/Link/Activity

Networking Interfaces

  • Management Port (1) 10/100 Ethernet Port
  • Data ports 1-5 (5) 10/100/1000 Ethernet Ports
