Ubiquiti UFiber Nano G GPON Gigabit Optical Network Unit (UF-Nano)

0 Based on 0 ratings.
15/12/2019 £59.70 exc. VAT
71.64 inc. VAT
Availability:In stock for next day delivery
Apply for Trade Pricing
Qty:
Key Features
  • WAN: 1 x GPON Port
  • LAN: 1 x Gigabit Ethernet Port
  • Gigabit PoE Powered

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:UF-Nano
Available Product Options:
Need Product Setup / Training / Support?:
UK Power Cable (free of charge):
  • Product Details
  • Reviews
  • White Papers / Case Studies

Ubiquiti UFiber UF-Nano G GPON Gigabit Passive Optical Network Unit

The Ubiquiti UFiber Nano G (UF-Nano) is a fiber solutions utilising Gigabit Passive Optical Network (GPON) technology. The UFiber UF-Nano G is a robust, high performance GPON CPE, which features an informational LED display and a sleek, sophisticated industrial design.

Ubiquiti UFiber UF-Nano G Key Features

  • WAN: (1) GPON Port
  • LAN: (1) Gigabit Ethernet Port
  • GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
  • Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
  • Robust ONU CPE
  • Compatible with 3rd-Party OLTs
  • Gigabit PoE Powered

Status Display

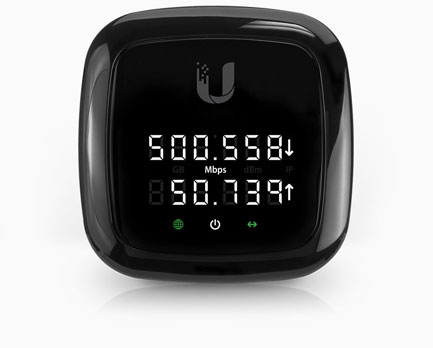

The easy-to-read display provides status information: IP address, signal strength, and current throughput.

Status display example

Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.

Image of single GPON WAN port and single Gigabit Ethernet RJ45 port

Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and third-party OLT devices.

Example of how the Nano G integrates with the UFiber OLT and third-party OLT devices.

Diagram to illustrate how up to 128 Nano G devices can connect to a single GPON SFP port

Ubiquiti UFiber UF-Nano G - Technical Specifications

General

  • Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")
  • Weight 110 g (3.88 oz)
  • Networking Interface Speeds (1) GPON WAN, ITU G.984,
    2.488 Gbps Downstream,
    1.244 Gbps Upstream
    (1) GbE LAN, 10/100/1000 Mbps
  • Management Interface In-Band Ethernet/PON
  • Normal Optical Power Range
    TX (Class B+): 1.5 dBm to 5 dBm
    RX: -8 dBm to -28 dBm
  • Power Method
    Passive PoE (Pins +4, 5; -7, 8)
    Dying Gasp Support
  • Power Supply PoE Adapter: 24V, 0.3A (Included)
  • Max. Power Consumption 7W
  • Supported Voltage Range 20V to 28V
  • Processor Specs MIPS-32, 240 MHz
  • Memory Information 128 MB DDR3
  • Buttons
    (1) Display Information
    (1) Reset
  • Operating Temperature -10 to 45° C (14 to 113° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Certifications CE, FCC, IC

Model Specifications

  • PoE Input 24V passive
  • Networking Interface GPON (SC/APC), Ethernet (RJ-45)
  • Operation mode Bridge only (router mode coming soon as a firmware update)
  • Supported OLTs UFiber OLT (coming soon), list of supported third-party OLTs
