Ubiquiti UniFI 7 Long-Range Access Point (U7-LR)

0 Based on 0 ratings.
Write a Review
SKU:U7-LR
27/05/2025 £114.65exc. VAT
£137.58 inc. VAT
Qty:
Coming Soon
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

No documents available for download

Key Features
  • Compact ceiling mount
  • Wi-Fi AP 7 with 5 spatial streams
  • Extended signal range
  • Product Details
  • Reviews

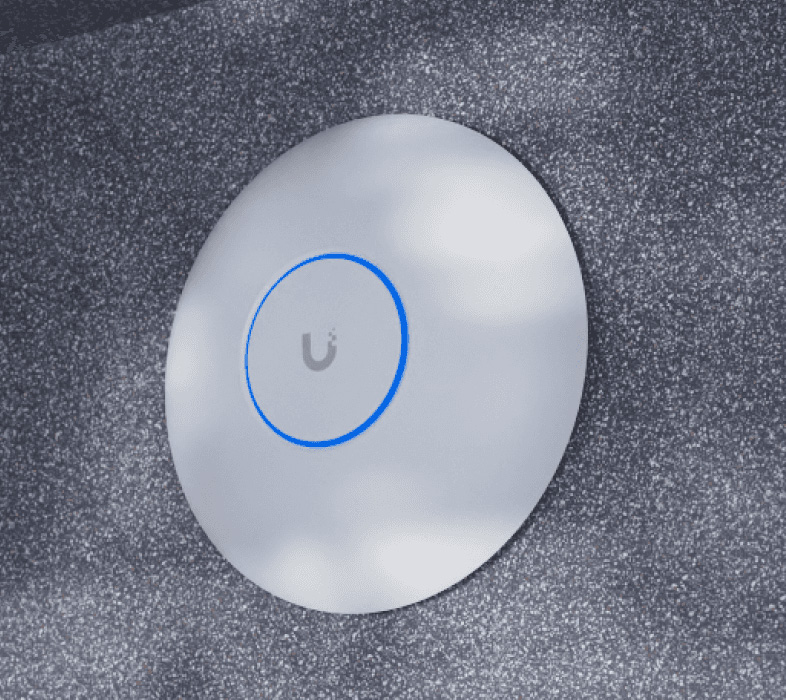

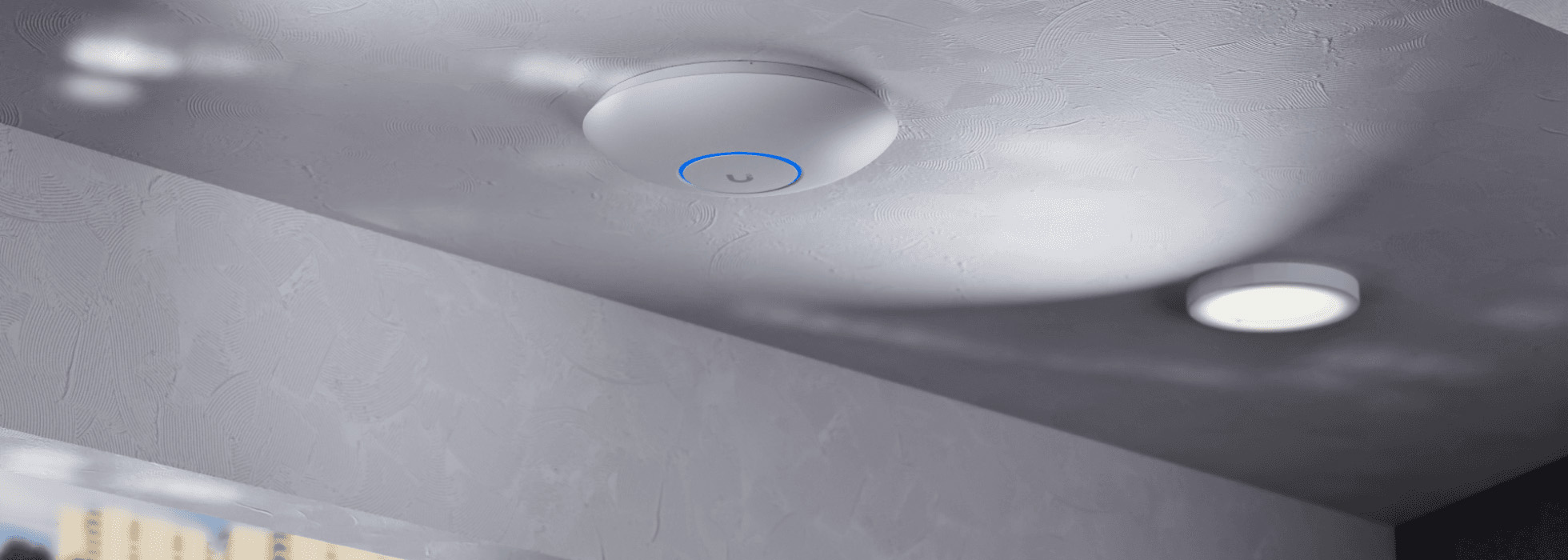

Ubiquiti UniFI 7 Long-Range Access Point (U7-LR)

The Ubiquiti UniFi 7 Long-Range Access Point is a high-performance Wi-Fi 7 access point designed for extended coverage and capacity. It features tri-band connectivity (2.4 GHz, 5 GHz, and 6 GHz) with 2x2 MU-MIMO on each band, supporting up to 300+ concurrent clients. The device offers a maximum throughput of 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz bands. With a 2.5 GbE uplink and PoE+ support, it's suitable for high-density environments requiring robust wireless performance.





Ubiquiti UniFi 7 Long-Range Access Point Key Features:

  • Tri-Band Wi-Fi 7 (802.11be): Operates on 2.4 GHz, 5 GHz, and 6 GHz bands, supporting wider channels up to 320 MHz for increased throughput.
  • 2x2 MU-MIMO on Each Band: Facilitates simultaneous communication with multiple devices, enhancing network efficiency.
  • High Throughput Rates: 2.4 GHz: Up to 688 Mbps, 5 GHz: Up to 2.9 Gbps, 6 GHz: Up to 5.8 Gbps
  • 2.5 GbE Uplink Port: Provides a high-speed wired connection to support the increased wireless throughput.
  • PoE+ Support: Simplifies installation by delivering both data and power over a single Ethernet cable.
  • Coverage Area: Designed to cover up to 140 m² (1,500 ft²), making it suitable for large spaces.
  • Concurrent Client Capacity: Supports over 300 concurrent clients, ideal for high-density environments.
  • Advanced Wi-Fi Features: Includes OFDMA, 4096-QAM modulation, and enhanced MU-MIMO for improved performance and efficiency.
  • Seamless Integration: Compatible with UniFi Network Controller for centralized management and monitoring.



Ubiquiti UniFi 7 Long-Range Access Point - Technical Specifications

Overview

  • Dimensions:  Ø171.5 x 33 mm (Ø6.8 x 1.3")
  • WiFi Standard:  WIFi 7
  • Spatial Streams:  5
  • Coverage Area:  160 m² (1,750 ft²)
  • Max. Client Count:  300+
  • Uplink:  2.5 GbE
  • Mounting Locations:  Ceiling, wall
  • Mounting Plate:  Plastic mounting plate (Included)
  • Power Method: PoE

Performance

  • MIMO 5 GHz 3 x 3 (DL/UL MU-MIMO)
      2.4 GHz 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate
      5 GHz 4.3 Gbps (BW240)
      2.4 GHz 688 Mbps (BW40)
  • Antenna Gain 5 GHz 6 dBi
      2.4 GHz 4 dBi
  • Max. TX Power 5 GHz 27 dBm 2.4 GHz 26 dBm
  • Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

  •  Wireless Meshing:  Yes
  •  Band Steering:  Yes
  •  802.11v BSS Transition Management:  Yes
  •  802.11r Fast Roaming:  Yes
  •  802.11k Radio Resource Management (RRM):  Yes
  •  Advanced Radio Management:  Yes
  •  Passpoint (Hotspot 2.0):  Yes
  •  Captive Hotspot Portal
      Custom Branding Landing Page: Yes
      Voucher Authentication: Yes
      Payment-Based Authentication: Yes
      External Portal Server Support: Yes
      Password Authentication: Yes
      Guest Network Isolation: Yes
  •  Private Pre-Shared Key (PPSK):  Yes
  •  WiFi Speed Limiting:  Yes
  •  Client Device Isolation:  Yes
  •  WiFi Schedules:  Yes
  •  RADIUS over TLS (RadSec):  Yes
  •  Dynamic RADIUS-assigned VLAN:  Yes

Hardware

  •  Max. Power Consumption: 14W
  •  Includes PoE Adapter —
  •  Supported Voltage Range:  42.5—57V DC
  •  Networking Interface:  (1) 2.5 GbE RJ45 port
  •  Weight:  448 g (15.8 oz)
  •  Management:  Ethernet
  •  Enclosure Material:  Polycarbonate, aluminum alloy
  •  Mount Material:  Polycarbonate, galvanized steel (SGCC)
  •  LEDs System - White/Blue
  •  Channel Bandwidth:  HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
  •  Certifications:  CE, FCC, IC
  •  NDAA Compliant - ✓
  •  Ambient Operating Temperature:  -30 to 40° C (-22 to 104° F)
  •  Ambient Operating Humidity:  5 to 95% noncondensing

Software

  • Application Requirements
      UniFi Network Version 9.0.114 and later
      UniFi OS iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
