Ubiquiti UniFi E7 Campus Access Point (E7-Campus)

0 Based on 0 ratings.
Write a Review
SKU:E7-Campus
Enquire
Coming Soon
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Documents and Manuals

No documents available for download

Key Features
  • WiFi 7
  • 10 spatial streams
  • Dedicated spectral analyser radio
  • 1,000+ connected devices
  • Product Details
  • Reviews

Ubiquiti UniFi E7 Campus Access Point (E7-Campus)

The Ubiquiti UniFi E7 Campus is an enterprise-grade indoor/outdoor access point delivering 10-stream WiFi 7 performance, PRISM™ active RF filtering technology, and built-in directional antennas for optimised connectivity and interference mitigation.

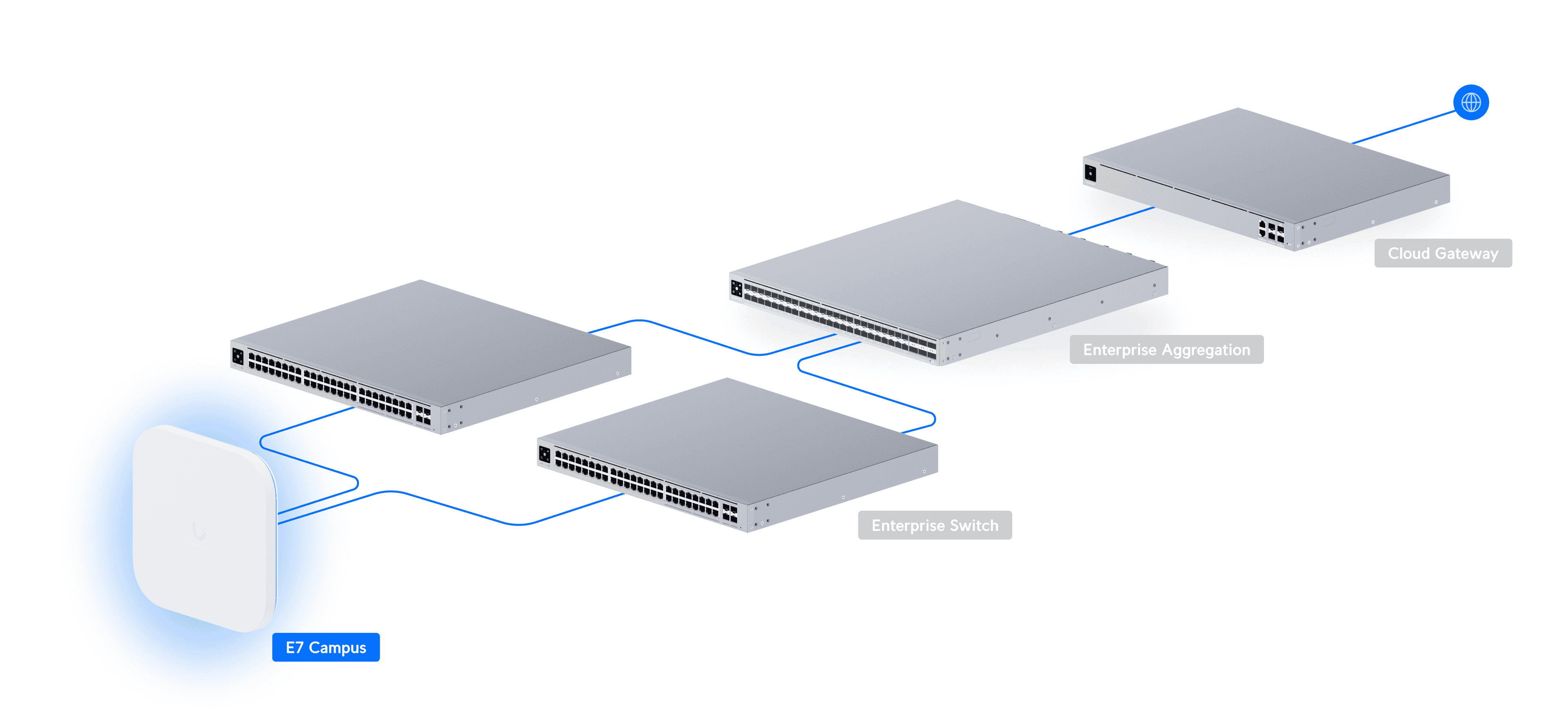

e7 campus deployment

Advanced WiFi 7 Access Point



High-Performance Connectivity and Coverage.



This enterprise-grade indoor/outdoor access point offers 10-stream WiFi 7 performance, supporting 10 spatial streams for ultra-fast and reliable connections. With a high-selectivity PRISM™ active RF filtering technology, it enhances channel selection through real-time spectral analysis. The access point also features a directional high-gain antenna array, providing up to 465 m² (5,000 ft²) of coverage and supporting over 1,000 connected devices.

Robust Design and Flexible Deployment



Redundant Connectivity and Easy Mounting.



Equipped with a 10 GbE RJ45 port and a GbE RJ45 port for power and data redundancy, this access point ensures high availability. Powered by PoE++ for efficient integration, it includes a versatile articulating wall/pole mount for precise positioning and VESA 100x100 compatibility, allowing flexible deployment in both indoor and outdoor environments.

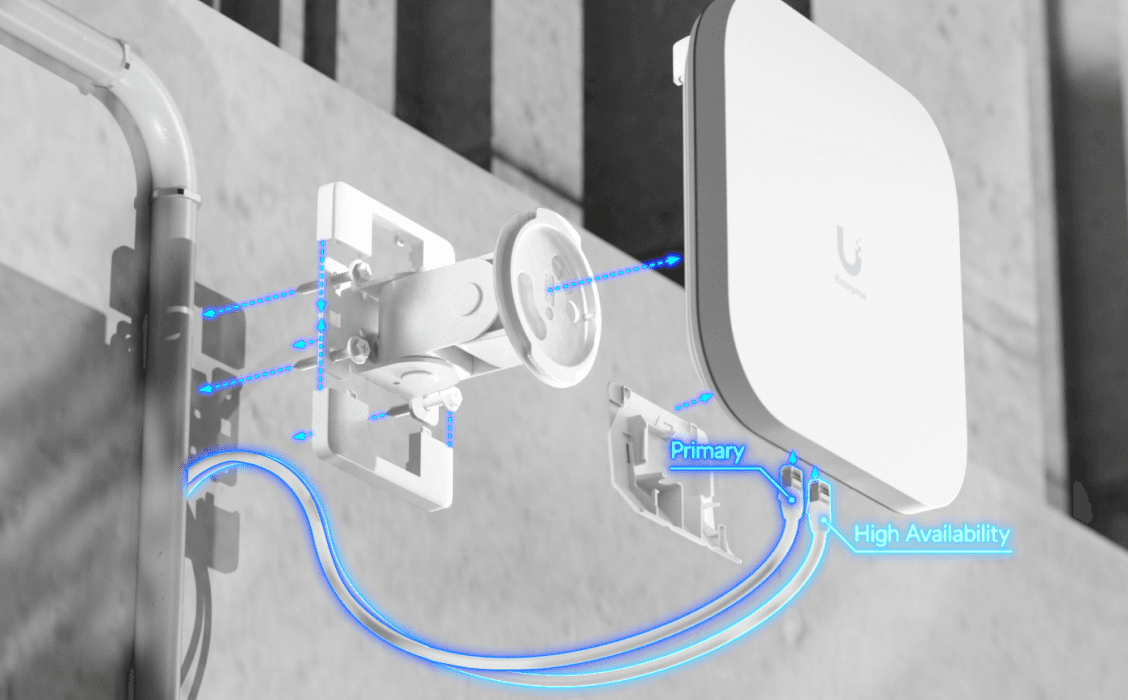

e7 campus installation

Specifications

Mechanical

  • Dimensions:
    • Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")
    • Articulating mount: Ø104 x 149.4 mm (Ø4.1 x 5.9")
  • Weight:
    • Device: 2.2 kg (4.9 lb)
    • Articulating mount: 0.9 kg (2 lb)
  • Enclosure material: UV-stabilized polycarbonate, aluminum alloy
  • Mount material: Stainless steel, aluminum alloy
  • Pole mount diameter: 1–2.5" (25–63.5 mm) on pipe outer diameter
  • Wind survivability: 164.75 N at 200 km/h (37 lbf at 125 mph)
  • Weatherproofing:
    • IPX6
    • IP67 with Waterproof Door Kit (Included)

Hardware

  • Networking interface: (1) 10 GbE RJ45 port, (1) 1 GbE RJ45 port
  • Management interface: Ethernet
  • Power method: PoE++
  • Power supply: UniFi PoE switch
  • Supported voltage range: 42.5—57V DC
  • Max. power consumption: 44W
  • Max. TX power:
    • 2.4 GHz: 23 dBm
    • 5 GHz: 30 dBm
    • 6 GHz: 30 dBm (36 dBm EIRP with Extended Range mode, available in FCC/IC region only)
  • MIMO:
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
    • 5 GHz: 4 x 4 (DL/UL MU-MIMO)
    • 6 GHz: 4 x 4 (DL/UL MU-MIMO)
  • Max. data rate:
    • 2.4 GHz: 688 Mbps (BW40)
    • 5 GHz: 8.6 Gbps (BW240)
    • 6 GHz: 11.5 Gbps (BW320)
  • Antenna gain:
    • 2.4 GHz: 9 dBi
    • 5 GHz: 12 dBi
    • 6 GHz: 12 dBi
  • Antenna: Internal with directional patterns
  • LEDs: R/G/B
  • Button: Factory reset
  • Mounting: Articulating mount for wall, pole, or ceiling mounting (Included)
  • Ambient operating temperature: -30 to 60° C (-22 to 140° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: FCC, IC

Software

  • WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 1,000+
  • Ubiquiti-specific features:
    • High selectivity PRISM™ RF filtering technology
    • Dedicated spectral analyzer radio

Supported Data Rates

  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
  • 802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
  • 802.11be (WiFi 7): 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)

Specifications Tab
