Ubiquiti UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE)

0 Based on 0 ratings.
Write a Review
SKU:USW-Pro-XG-48-PoE
Enquire
Coming Soon
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Volume Price Discounts

 $1,338,428.71

Documents and Manuals

No documents available for download

Key Features
  • Advanced Layer 3 switching features
  • 32x 10GbE RJ45 ports
  • 1.3" LCM color touchscreen with AR switch management
  • Product Details
  • Reviews

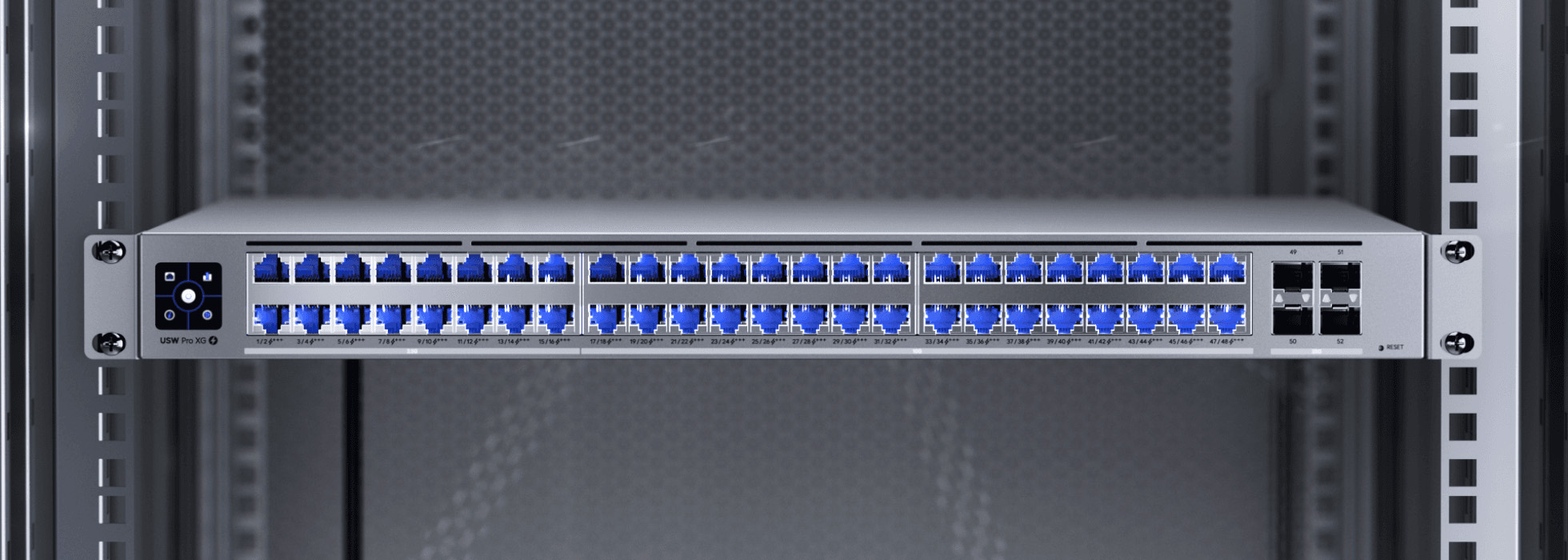

Ubiquiti UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE)

The Ubiquiti UniFi Switch Pro XG 48 PoE (USW-Pro-XG-48-PoE) is a high-performance, enterprise-grade Layer 3 switch designed for demanding network environments that require high-speed connectivity and substantial Power over Ethernet (PoE) capabilities.​

Ubiquiti UniFi Switch Pro XG 48 PoE Key Features

  • Port Configuration: 32 × 10 GbE RJ45 ports, 16 × 2.5 GbE RJ45 ports, 4 × 25G SFP28 ports
  • PoE Capabilities: All 48 RJ45 ports support PoE+++ (up to 90W per port), Total PoE power availability: 1,080W (when using 200–240V AC input)
  • Performance: Switching capacity: 920 Gbps, Total non-blocking throughput: 460 Gbps, Forwarding rate: 684.48 Mpps
  • Layer 3 Features: Supports DHCP server, DHCP relay, inter-VLAN routing, and static routing
  • Etherlighting™ Technology: Ports illuminate to indicate port location, speed/link status, and native VLAN/network, enhancing visibility and management
  • Redundancy and Power: Equipped with an internal 1,350W AC/DC power supply, Supports DC power backup via the UniFi SmartPower RPS (USP RPS) for uninterrupted operation
  • Management and Monitoring:  Features a 1.3" touchscreen display for real-time system information, Managed through the UniFi Network Controller, offering a comprehensive suite of configuration and monitoring tools​
  • Physical Specifications:  Form factor: 1U rack-mountable, Dimensions: 442 x 480 x 44 mm, Weight: 8.7 kg (without mounting brackets) ​



U6-PRO Deployment



The USW-Pro-XG-48-PoE is ideal for large-scale deployments requiring high-speed data transfer, extensive PoE support, and advanced Layer 3 networking features. Its robust design and comprehensive feature set make it suitable for enterprise networks, data centers, and environments with high-density PoE device requirements.

Ubiquiti UniFi Switch Pro XG 48 PoE Technical Specification

Overview

  • Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
  • Port Layout:
    • 2.5 GbE RJ45 -  16 (All PoE+++) (2.5G/1G/100M/10M)
    • 10 GbE RJ45 - 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
    • 25G SFP28 - 4 (25G/10G/1G)
  • Max. PoE Output: Up to PoE+++
  • Total PoE Availability: 200-240V AC: 1080W 100-120V AC: 972W
  • Redundancy: DC Power Backup
  • Layer 3: Yes
  • Form Factor: Rack mount (1U)
  • Etherlighting™ : Yes

Performance

  • Switching Capacity: 920 Gbps
  • Total Non-Blocking: Throughput 460 Gbps
  • Forwarding Rate: 684 Mpps
  • Supported VLANs: 1,000
  • L3 Table Size:
    • ARP Entries - 128,000
    • IPv4 Routes - 256,000
  • Packet Buffer Size: 8 MB

Layer 3 Features

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes

Hardware

  • PoE Ports: PoE+++ - 48
  • Max. PoE Wattage per Port by PSE:
    • PoE - 15.4W
    • PoE+ - 30W
    •  PoE++ - 60W
    • PoE+++ - 90W
  • Max. Power Consumption: 200W (Excluding PoE Output), 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output)
  • Power Method: (1) Universal input, 100—240V AC, 50/60 Hz (1), USP RPS DC input
  • Power Input Method: AC input
  • Power Supply: AC/DC, internal, 1,350W
  • Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR
  • Weight: Without mounting brackets: 8.7 kg (15.4 lb), With mounting brackets: 8.8 kg (15.7 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth: 482.6 mm (19") four-post racks, Posts depths ranging from 600 to 1,066 mm (23.6-42”)
  • LCM Display: 1.3" touchscreen
  • ESD/EMP Protection: Air: ± 30kV, contact: ± 20kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting™:
    • Ethernet - Yes
    • SFP28 - Yes
  • LEDs: RPS - Yes
  • Certifications: CE, FCC, IC
  • NDAA Compliant: Yes
