Ubiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE)

0 Based on 0 ratings.
Write a Review
SKU:USW-Pro-XG-8-PoE
Enquire
Coming Soon
Accessories, Add-Ons, and Extras

Need Trade Pricing?

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

Volume Price Discounts

 $1,338,428.71

Documents and Manuals

No documents available for download

Key Features
  • (8) Multi-speed 10 GbE PoE++ RJ45 ports
  • PoE++ (802.3bt) on all RJ45 ports
  • Layer 2 and basic Layer 3 features
  • Product Details
  • Reviews

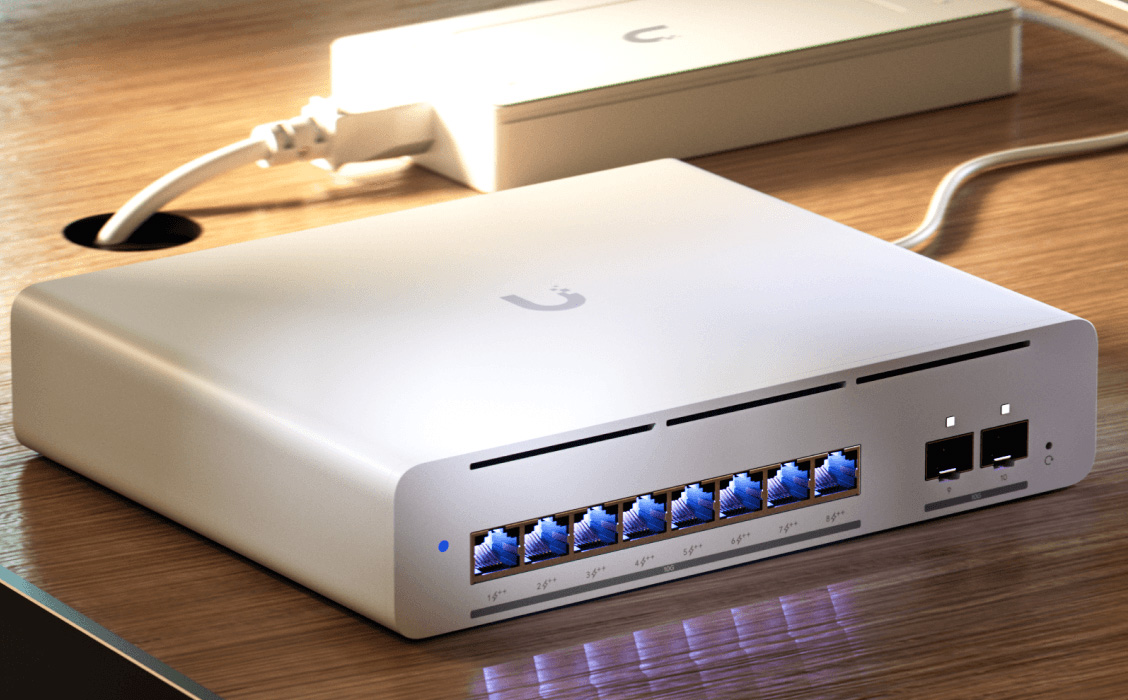

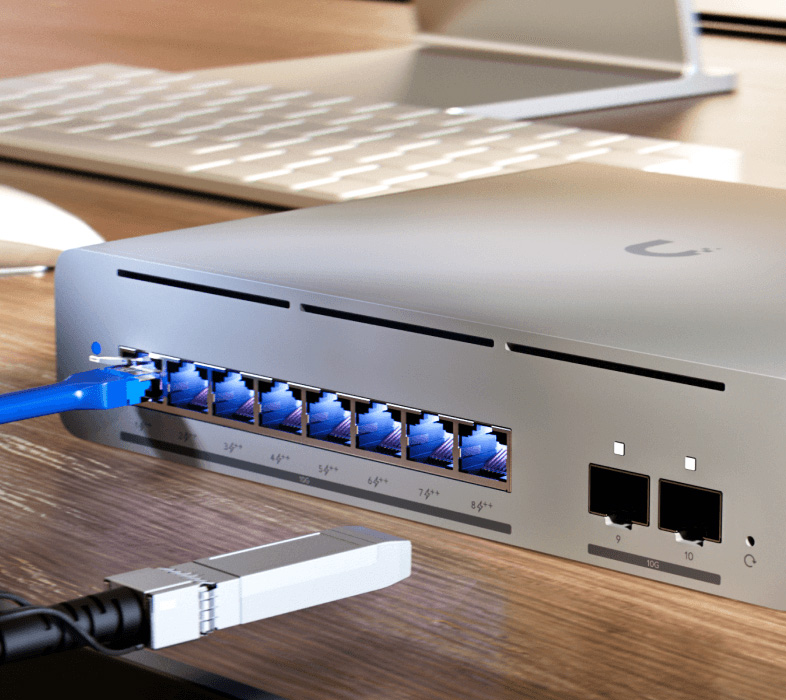

Ubiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE)

TheUbiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE) is a compact, fully managed Layer 3 switch designed for high-performance networking in small to medium-sized environments. It combines advanced switching capabilities with robust Power over Ethernet (PoE) support, making it ideal for powering devices like access points, IP cameras, and VoIP phones.​

Ubiquiti UniFi Switch Pro XG 8 PoE Key Features

  • Port Configuration: (8) Multi-speed 10 GbE PoE++ RJ45 ports (Supports: 10G / 5G / 2.5G / 1G / 100M), (2) 10G SFP+ ports
  • PoE Budget: Capabilities:   PoE++ (802.3bt) on all RJ45 ports, 155W total PoE power budget (with included power adapter)
  • Performance: Designed for high-throughput aggregation, Suitable for core switching or PoE-intensive applications
  • Power Input: External power via 54V DC adapter
  • Management: Managed via UniFi Network Controller, Supports Layer 2 and basic Layer 3 features (like VLANs, inter-VLAN routing)
  • Form Factor:Fanless, compact design,  Desktop or wall mountable



U6-PRO Deployment U6-PRO Deployment



The USW-Pro-XG-8-PoE switch is ideal for deployments requiring a combination of high-speed connectivity and substantial PoE support in a compact form factor. Its silent operation and advanced management features make it suitable for office environments, retail spaces, and other noise-sensitive areas.

Ubiquiti UniFi Switch Pro XG 8 PoE Technical Specification

Overview

  • Dimensions: 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")
  • Port Layout:
    • 10 GbE RJ45 - 8 (All PoE++) (10G/5G/2.5G/1G/100M)
    • 10G SFP+ -  2 (10G/1G)
  • Max. PoE Output: Up to PoE++
  • Total PoE Availability: 155W
  • Layer 3: Yes
  • Form Factor: Compact desktop, wall
  • Etherlighting™ : Yes

Performance

  • Switching Capacity: 200 Gbps
  • Total Non-Blocking: Throughput:  100 Gbps
  • Forwarding Rate: 149 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000
  • L3 Table Size:
    • ARP Entries - 12,000
    • IPv4 Routes - 12,000
  • Packet Buffer Size: 2 MB

Layer 3 Features

  • DHCP Server (Local Networks): Yes
  • DHCP Relay: Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes

Layer 2 Features

  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • IGMP Snooping: Yes
  • 802.1X Control: Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Flow Control: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Port Mirroring: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Loop Protection: Yes

Hardware

  • PoE Ports: PoE++ - 8
  • Max. PoE Wattage per Port by PSE:
    • PoE - 15.4W
    • PoE+ - 30W
    •  PoE++ - 60W
  • Max. Power Consumption: 61W (Excluding PoE output), 220W (Including PoE output)
  • Power Method: AC/DC Adapter (included)
  • Power Input Method: DC input
  • Power Supply: AC/DC, external, 210W
  • Management: Ethernet
  • Weight: 1.6 kg (3.5 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: Polycarbonate
  • ESD/EMP Protection: Air: ± 30kV, contact: ± 30kV
  • Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • Etherlighting™:
    • Ethernet - Yes
    • SFP28 - Yes
  • LEDs: RPS - Yes
  • Certifications: CE, FCC, IC
  • NDAA Compliant: Yes
