Peplink MAX BR1 Mini 5G No Wi-Fi (MAX-BR1-MINI-5GN-T-M-PRM)
The Peplink MAX BR1 Mini 5G No Wi-Fi is a compact, industrial-grade mobile router designed for reliable 5G connectivity in environments where Wi-Fi is not required. Its rugged design and versatile features make it suitable for deployments in vehicles, remote offices, IoT applications, and industrial settings.
One device to do it all

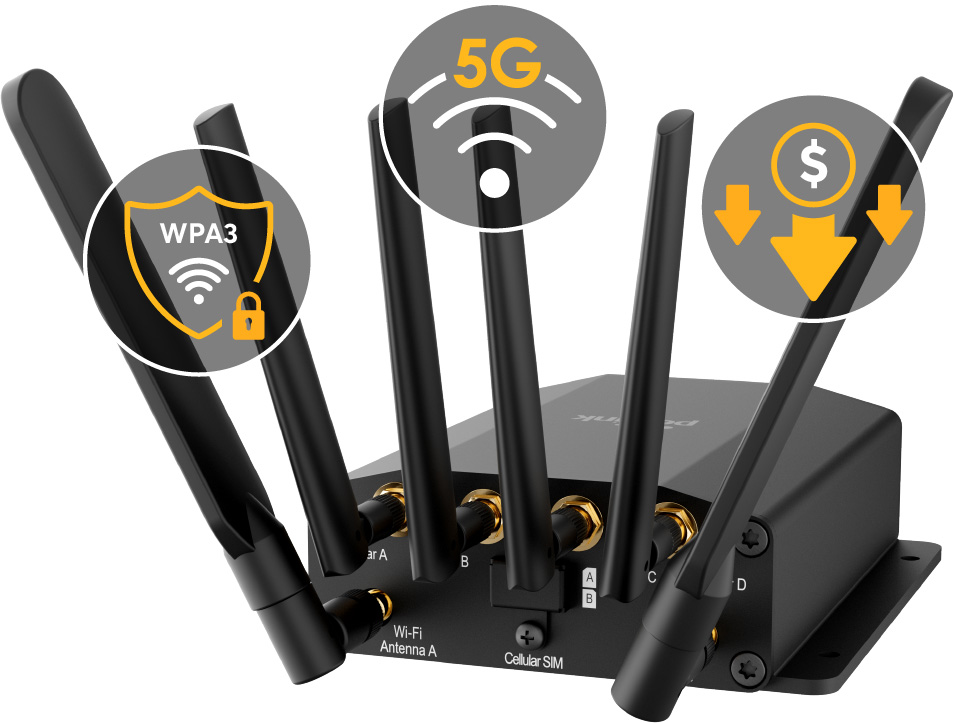

Bring 5G Wi-Fi to your setup with a single compact device. This means simpler networks, lower costs and fewer points of failure.
Utilize Wi-Fi WAN for Added Reliability
Take an existing Wi-Fi connection and use it as an additional WAN for yourself. Having multiple redundant WANs helps ensure your connection stays up when your 5G or wired connection falters.
Stay in touch with InTouch
Access connected devices, like sensors and cameras, with out of band management at 5G speeds.
Monitor your entire network from a single screen
Remotely access your Peplink devices’ web admin with InControl2, our cloud-based endpoint management system. Generate reports and push configurations for more effective management.
Peplink MAX BR1 Mini 5G with Wi-Fi Key Features
- 5G Connectivity - Equipped with a global 5G modem supporting both NSA and SA modes, Compatible with a wide range of 5G and LTE bands, ensuring global coverage, Dual SIM slots (nano SIM and eSIM) for carrier redundancy and failover.
- Networking Options - One Gigabit Ethernet WAN port (optional) and up to three Gigabit Ethernet LAN ports, Supports Ethernet WAN, Hot Failover, WAN Smoothing, and Bandwidth Bonding with a feature pack license or PrimeCare subscription
- Robust Security and VPN Support - Includes a stateful firewall, DoS prevention, and web blocking capabilities, Supports SpeedFusion VPN with features like Hot Failover and WAN Smoothing (with PrimeCare), Offers IPsec VPN support for secure site-to-site connections
- Rugged and Reliable Design - Housed in a durable metal case with a fanless, ventless design, Certified for shock and vibration resistance, suitable for deployment in challenging environments.
- Centralized Management - Manage and monitor devices remotely using Peplink's InControl 2 cloud-based platform, Access connected devices like sensors and cameras through Peplink InTouch for out-of-band management at 5G speeds
Peplink MAX BR1 Mini 5G No Wi-Fi - Technical Specifications
General
- WAN Interface: 1x 10/100/1000M Ethernet ,1x Embedded Cellular Modem with Redundant SIM Slots
- LAN Interface: 2x 10/100/1000M Ethernet
- SpeedFusion features: Hot Failover / Smoothing / Bandwidth Bonding
- Number of SpeedFusion VPN Peers: 2/5
- Router Throughput: 300 Mbps
- SpeedFusion VPN Throughput - No Encryption / 256-bit AES: 80 Mbps/ 60 Mbps
- Recommended Users: 1-60
- Cellular Data Rate (Downlink/Uplink): 5G: 3.4 Gbps / 900 Mbps, CAT-20: 1.6 Gbps / 200 Mbps
- Antenna Connectors: 4x SMA Cellular Antenna Connectors
- Power Input: Power Port: 10V – 30V DC AC, Adapter: AC Input 100V–240V / DC Output 12V, Power over Ethernet 802.3at
- Power Consumption: 11W (nominal) , 13W (max.)
- Dimension: 5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm
- Weight: 0.93 pounds / 420 grams
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
- Certification: FCC, CE, RoHS, EN 61000 Electromagnetic Compatibility, EN 45545-2 Railway applications - Fire protection
- Package Content:
1x BR1 Mini 5G (HW2)
4x LTE/5G Antennas (ACW-235)
1x 12V 2A 4pin Power Supply (ACW-632)
- SIM Options: Nano-SIM (4FF), Peplink eSIM, BYO eSIM (2 profiles)
- Warranty: 1-Year Limited Warranty
- MAX-BR1-MINI-5GN-T-M-PRM - Embedded Modem(s): 1x 5G
- Regions: Global (US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet )
- 5G Bands: 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
- LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Deep Dive
- Software: Pepwave MAX Firmware
- WAN:
- Support for PPPoE, Static IP, DHCP
- WAN Link Health Check
- Bandwidth Allowance Monitor
- Support for Dynamic DNS services
- WAN Port Convertible into LAN Port
- LAN:
- DHCP Server for LAN Clients
- Extended DHCP Option
- DHCP Reservation
- DNS Proxy for LAN Clients
- VLAN on LAN Support
- Security:
- Stateful Firewall
- DoS Prevention
- Web Blocking
- Complete VPN Solution:
SpeedFusion VPN/SpeedFusion
• Hot Failover
• Site-to-Site VPN
• 256-bit AES Encryption
• Pre-shared Key Authentication
- Advanced QoS:
Individual Bandwidth Limit
Application Prioritization
• SIP, HTTPS, VPN QoS
• Custom Application QoS
- Networking:
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
- Captive Portal Support:
- Support for Wired LAN and Wireless* LAN clients
- Support RADIUS Authentication
- Time and Usage Quotas on Open Access Mode
- Built-in Customizable Splash Page
- Device Management:
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notification
- Active Client & Session Lists
- Bandwidth Usage Statistics
- Syslog Service
- SNMP v1, v2c and v3
