QuWireless QuSpot for RUT240/RUT230 Integrated Multi-band LTE Omni Antenna + Wifi Omni Antenna All In One (A240S)

0 Based on 0 ratings.
02/12/2020 £69.00 exc. VAT
82.80 inc. VAT
Availability: Available
Apply for Trade Pricing
Qty:
Key Features
  • Outdoor use IP67
  • Maximises signal
  • PoE support

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:A240S
  • Product Details
  • Reviews
  • White Papers / Case Studies

QuWireless QuSpot for RUT240/RUT230 Integrated Multi-band LTE Omni Antenna + Wifi Omni Antenna All In One (A240S)

The QuWireless A240S is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antenna. If you use RUT240 or 230 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

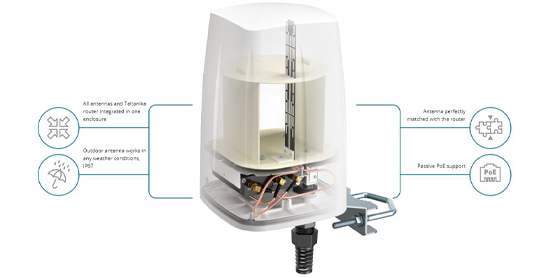

QuSpot Diagram

NOTE: For RUT230 one LTE antenna is unplugged.

QuWireless A240S Key Features

  • All antennas and router integrated into one enclosure
  • Outdoor use - works in any weather condition IP67
  • Maximise signal
  • Passive PoE support
QuWireless A240S Technical Specifications

LTE Specification

  • Frequency:
    - 0.694-0.96 GHz
    - 1.7 - 2.2 GHz
    - 2.2 - 2.7 GHz
  • Gain:
    - 2 dBi
    - 2 dBi
    - 4 dBi
  • VSWR:
    - <1.70, max <2.00
    - <1.60, max <2.00
    - <1.60, max <2.00
  • Beamwidth:
    - 360°/35° +/- 5°
    - 360°/35° +/- 5°
    - 360°/35° +/- 5°
  • Polarisation: Vertical
  • Impedance: 50 Ω

WiFi Specification

  • Frequency:
    - 2.40-2.50 GHz
    - 4.70 - 6.00 GHz
  • Gain:
    - 6 dBi
    - 7 dBi
  • VSWR:
    - <1.70, max <2.00
    - <1.70, max <2.00
  • Beamwidth:
    - 360°/25° +/- 5°
    - 360°/25° +/- 5°
  • Polarisation: Vertical
  • Impedance: 50 Ω

Mechanical Specification

  • Materials: ABS, aluminum, PTFE
  • Ingress Protection: IP67
  • Dimensions:
    - 160 x 160 x 240 mm
    - 6.3 x 6.3 x 9.45 inch
  • Weight:
    - 1.5 kg
    - 3.31 lbs
  • Operating Temperature:
    - From -40°C to 75°C
    - From -40°F to 167°F

Specifications Tab
