Ruckus Zone Flex 7962 802.11n Access Point
The highest performing enterprise-class dual-band 802.11n Smart Wi-Fi AP with Dynamic Beamforming
The Ruckus ZoneFlex 7962, the industry’s top performing dual-band 802.11n access point with dynamic beamforming, delivers ultra-high speed, reliable and longest-range connectivity within challenging RF environments.
The ZoneFlex 7962 from Ruckus is based on Ruckus’ patented dynamic RF beamforming technology that extends signal range two to four times while minimizing packet loss by constantly routing Wi-Fi transmissions over the highest performing signal paths.

The world’s only enterprise-class AP that concurrently supports Automatic Interference Mitigation (AIM), spatial multiplexing and dynamic beamforming, the Ruckus ZoneFlex 7962 delivers the industry’s most solid 802.11n performance at range.
Because the Ruckus ZoneFlex 7962 is able to constantly find the best RF paths for each packet, once deployed, enterprises never have to worry about constant site surveys as the environment changes.
It’s also the only 802.11n product purpose-built for hotels, schools and enterprises that enables high-definition IPTV, video-ondemand and other video applications while supporting VoIP and data applications for guests and employees.
Ideal for multimedia and high-density user environments, the Ruckus ZoneFlex 7962 can be deployed as a standalone access point or as part of centrally-controlled Smart Wireless LAN with the Ruckus ZoneDirector.
Smart Mesh Networking, another unique feature, makes the Ruckus ZoneFlex 7962 perfect for reliably extending wireless LAN services to areas where cabling Ethernet isn’t possible or economical — saving time and money. With dual radios, the Ruckus ZoneFlex 7962 delivers high-performance throughout the mesh network.
The Ruckus ZoneFlex 7962 is also perfect for service providers interested in delivering high-performance multimedia hotspots, hotzones and managed services. Coupled with the Ruckus FlexMaster Wi-Fi management platform, the Ruckus ZoneFlex 7962 opens the door for extending branded broadband services and new revenue-generating services.
Automated deployment keeps configuration and installation super simple — even for large enterprise deployments. And support for standard 802.3af Power Over Ethernet (PoE) eliminates migration pains by leveraging existing PoE switches.
Highest performance at range
Dynamic beamforming enables Wi-Fi signals to be constantly formed and directed over the best performing signal paths thereby ensuring the lowest packet loss and highest performance at range.
Extended coverage means fewer APs
Directional, high-gain antennas dynamically combine to give hotspot operators and enterprises 2- to 4-times the coverage over typical consumer and enterprise APs.
Wire-like reliability
Advanced smart antenna array and Quality of Service (QoS) technology combine to deliver the industry’s most reliable and highest performing 802.11n system available.
Concurrent support for high-definition IP video, voice and data
A directional, high-gain antenna finds the best path for any given transmission allowing unprecedented support for picture perfect high-definition video, crystal clear voice and high speed data.
Automated deployment keeps things ultra simple
Configuration and ongoing management is radically simplifi ed through a Web-based wizard and automated deployment capabilities
Distributed forwarding architecture eliminates bottlenecks
Standalone or controller-based, traffic is not forced through the controller eliminating any single point of failure or performance bottleneck.
Simple extension of WLAN services
Integrated support for Smart Mesh Networking gives enterprise the power to easily extend WLAN services wherever needed and without having to run costly and cumbersome Ethernet cabling to every AP.
Investment protection for legacy Wi-Fi networks
The Ruckus ZoneFlex 7962 gives enterprises protection over their wireless investments by enhancing performance and range for legacy 802.11a/b/g clients.
Hassle free migration to higher speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades.
Enables new class of provider hotspots services
New revenue opportunities for operators such as Voice-over-WLAN services, extended enterprise access and IP video applications.
Patented BeamFlex™ Technology Extends Signal Range, Improves Stability of Client Connections
The Ruckus ZoneFlex 7962 Smart Wi-Fi access point integrates a software-controlled smart antenna array that delivers 7dBi of signal gain and 15dB of interference rejection. This allows a 2 to 4x improvement in signal range and a reduction in packet loss from the ability to automatically avoid interference and obstacles.
Advanced WLAN Applications with Smart/OS
When used with the Ruckus ZoneDirector Smart WLAN controller, the Ruckus ZoneFlex 7962 supports a wide range of value-added applications such as guest networking, Smart Wireless Meshing, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. With Smart/OS, up to 32 discrete WLANs can be created and mapped to the same or different APs or VLANs. WLANs can also be grouped and shared by specific APs. In a centrally managed configuration, the Ruckus ZoneFlex 7962 works with a wide range of authentication servers including Microsoft’s Active Directory, LDAP, and RADIUS.
Flexible Deployment Options
Ruckus ZoneFlex 7962 APs can be deployed in as a standalone AP or as part of a centrally managed wireless LAN using ZoneDirector Smart WLAN controllers. Ruckus ZoneFlex 7962’s can be deployed across any L2/L3 network and/or meshed without Ethernet cabling. When used with the ZoneDirector, the Ruckus ZoneFlex 7962 is automatically configured through the network making deployment quick and easy.

Complete Local and Remote Management
The Ruckus ZoneFlex 7962 can be managed as a standalone AP through a Web-based GUI, using SNMP or through the Ruckus FlexMaster Wi-Fi remote management system. Local management can also be performed using the ZoneDirector Smart WLAN controller.
FlexMaster is a LINUX-based software platform that uses industry-standard protocols to perform bulk configuration, fault detection, monitoring and a wide range of troubleshooting capabilities over a wire area connection.
The ZoneDirector enables local management and control of APs, adding value-added services such as transmit power and channel management, guest networking and meshing.
- provide over 4000 potential antenna combinations for high availability Wi-Fi
- An automatic signal optimizer modifies RF transmissions based on the orientation of the access point
A patented smart antenna array integrates high-gain, directional antenna elements deliver up to 7dBi in signal gain and up to -15dB of interference avoidance for unprecedented range extension, signal reliability and higher data rates.

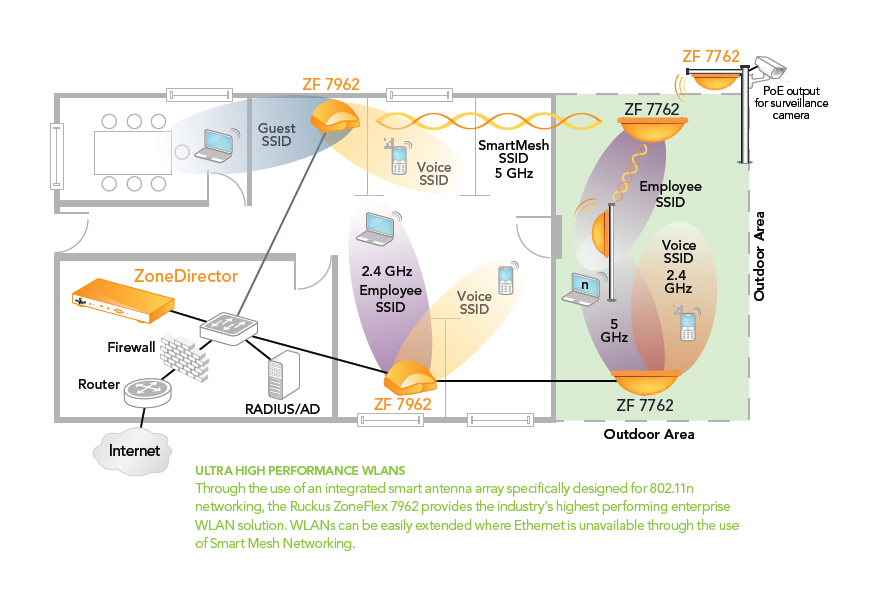

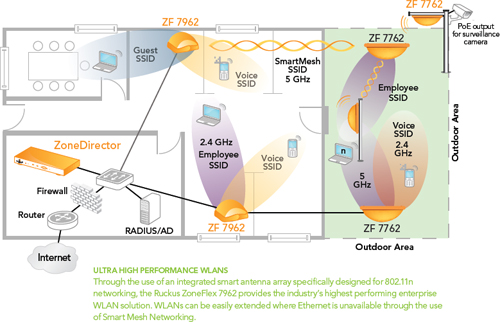

Through the use of an integrated smart antenna array specifically designed for 802.11n networking, the Ruckus Ruckus ZoneFlex 7962 provides the industry’s highest performing enterprise WLAN solution. WLANs can be easily extended where Ethernet is unavailable through the use of Smart Mesh Networking.
Concurrent IP & Video Data
With integrated quality of service mechanisms and an intelligent multi-element antenna array, the Ruckus ZoneFlex 7962 stands alone as the only dual-band 802.11n system capable of supporting picture perfect transmission of IP-based streaming video concurrently with high-performance data traffic.
Ruckus ZoneFlex 7962 Access Point Technical Specifications
Power
- External power adapter Input: 110-240V AC, Output: 12V DC, 1.5A
- Power over Ethernet Class 0
Physical Size
- 19.43cm (L), 14.43cm (W), 12.38cm (H)
Weight
Antenna
- Internal software-con.gurable antenna array with directional and omni high-gain elements that provide over 4,000 unique antenna patterns
Ethernet Ports
- 2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45
Power over Ethernet
Lock Option
- Integrated Kensington lock
Power Draw
- 12.95W (PoE)
- 15W (12V DC)
Concurrent Stations
Target UDP
- 150-200 Mbps (300 Mbps bursts)
Throughput
- Sustainable throughput for a 5000 sq. foot (460 sq meter) area for each radio for each band
Simultaneous Vo-Fi Clients
Classes of Service
- Voice, video, best effort and background
Software Queues
802.11e Supported
Automatic Traffic
- Automatic type of service tagging
- Classification for multicast video packets
Rate Limiting
VLAN Support
Heuristics Classification
Deployment
- Managed by ZoneDirector
- Individually Managed
- Managed by FlexMaster
Configuration
- Web user interface, CLI (Telnet), SSH HTTP/S, SNMP via ZoneDirector, TR-069 via FlexMaster
Statistics LAN
- Wireless and associated stations (accessible via Web UI)
AUTO AP Software Updates
- FTP or TFTP, remote auto available
Standards
- IEEE 802.11a/b/g/n
- 2.4GHz and 5GHz concurrent operation
Supported Data Rates
- 802.11n: 6.5Mbps -144.4Mbps (20MHz) 6.5Mbps - 300Mbps (40MHz)
- 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
- 802.11b: 11, 5.5, 2 and 1 Mbps
- 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Radio Chains
Spatial streams
RF power Output
Channelization
Frequency Band
- IEEE 802.11n: 2.4 – 2.484 GHz and 5.15 – 5.85 GHz
- IEEE 802.11a: 5.15 – 5.85 GHz
- IEEE 802.11b: 2.4 – 2.484 GHz
Operating Channels
- US/Canada: 1-11, Europe ( ETSI X30):
- 1-13, Japan X41: 1-13
- 5GHz channels: Country dependent for the following channel ranges: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165
BSSID
- Up to eight per radio (16 total)
Power Save
Wireless Security
- WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
- Authentication via 802.1X, local authentication database, support for RADIUS, LDAP, and ActiveDirectory
Physical Size
- 19.43cm (L), 14.43cm (W), 12.38cm (H)
Weight
Environmental
- Operating Temperature: 32°F (0°C) - 122°F (50°C)
- Operating Humidity: 15% - 95% non-condensing
Certifications
- U.S., Europe, Australia, Canada, China, Colombia, Hong Kong, India, Malaysia, Mexico, New Zealand, Philippines, Singapore, Taiwan, Thailand, Vietnam
WEEE/RoHS compliance
Wi-Fi Alliance Certifi cation (Wi-Fi Certifi ed™)
