Teltonika RUT955 LTE 4G RS232/RS485 Router

Based on 0 ratings.

Write a Review

SKU:RUT955

Enquire

In Stock

Antenna Required?:
SIM Tariff Option:
Software Licence:

If you are a Wireless or comms reseller and are interested in selling 4Gon products as part of your business offering, you can apply to become an authorised reseller. Once accepted, you will have access to reseller pricing. Apply now

1,170,815.01EUR

  Teltonika RUT955 Datasheet (PDF)
  Teltonika RUT955 User Manual (PDF)
  Teltonika RUT955 Quick Start Guide (PDF)

Key Features

4G LTE up to 150 Mbps
Dual SIM
Multiple LTE FDD bands

Product Details
Specification
Reviews
Questions

Teltonika RUT955 4G LTE RS232/RS485 Router

The Teltonika RUT955 is a highly reliable and secure industrial 4G LTE router that delivers high performance. mission-critical cellular communication and GPS location capabilities.

Teltonika RUT955 Key Features

4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Dual SIM failover
Global Navigation Satelite System for location services and time synchronisation
RS232/RS485 serial communication interfaces
I/0: Multiple digital and analog inputs and outputs for equipment control and event notification
Four Ethernet Ports

The RUT955 router is equipped with 4G backup WAN and connectivity redundancy through dual SIM failover.

This router also features Ethernet, digital and analogue I/O, RS232, RS485, GNSS (GPS), microSD and USB interfaces that allow for a wide variety of industrial deployment scenarios.

RutOS sofware comes with this router and is packed with advanced features, like Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPN services.

Teltonika RUT955 - Technical Specifications

Mobile

Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
APN: Auto APN
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list: Operator black/white list
Multiple PDN (optional): Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display

Wireless

Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi: WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security: WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID: SSID stealth mode and access control based on MAC address
WiFi users: up to 100 simultaneous connections
Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customisable landing page

Ethernet

WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN: 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules
DHCP: Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Load balancing: Balance your internet traffic over multiple WAN connections
NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW)
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

Security

Authentication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
WiFi security: WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
VLAN: Port based and tag based VLAN separation
Mobile quota control: Set up custom data limits for both SIM cards
WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBCIPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnelPPTP, L2TP: Client/Server services can run simultaneouslyStunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN

Monitoring and Management

WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call: Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP trap
JSON-RPC: Management API over HTTP/HTTPS
MODBUS: MODBUS TCP status/control
RMS: Teltonika Remote Management System (RMS)

IoT Platforms

Cloud of Things; Allows monitoring of: Device data, Mobile data, Network info,Availability
ThingWorx: Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub: Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

System Characteristics

CPU: Atheros Wasp, MIPS 74Kc, 550 MHz
RAM: 128 MB, DDR2
FLASH memory: 16 MB SPI Flash

Location Tracking

GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA: NMEA 0183
NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software: supported server software TAVL, RMS
Mobile Network Geolocation: Location without using GPS, get approximate location based on mobile tower on RMS
Geofencing: Configurable multiple geofence zones

Power

Connector: 4 pin industrial DC power socket
Input voltage range: 9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption: < 2 W idle, < 7 W Max

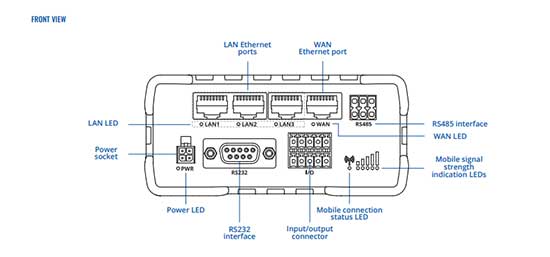

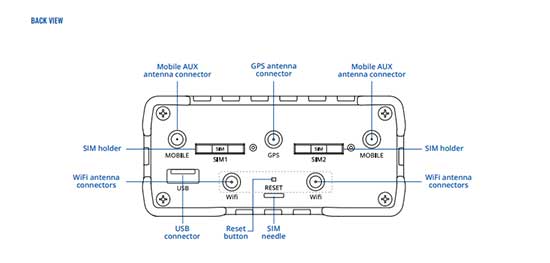

Physical Interfaces (ports, LEDs, antennas, buttons, SIM)

Ethernet: 4 x RJ45 ports, 10/100 Mbps
I/O’s: 10 Inputs/Outputs pin connector, 2 Inputs/Outputs pin on 4 pin power connector (available from HW revision 1600)
Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power: 4 pin power connector with 2 pins for Input/Output
Input/output: 10 pin industrial socket for inputs/outputs
Antennas: 2 x SMA for LTE, 1 x SMA for GNSS, 2 x RP-SMA for WiFi antenna connectors
USB: USB A port for external devices
SD card: Micro SD card slot
RS232: DB9 socket for full-featured RS232
RS485: 6 pin industrial socket for 2/4 wire RS485
Reset: Reset/restore to default button

Physical Specification

Casing material: Aluminium housing, plastic panels
Dimensions: 100 x 110 x 50 mm (L x W x H)
Weight: 287 g
Mounting options: DIN rail (can be mounted on two sides), flat surface placement

Specifications Tab
